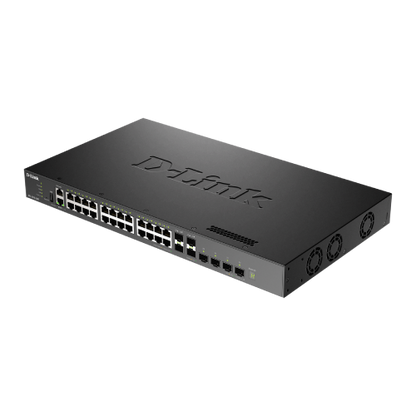

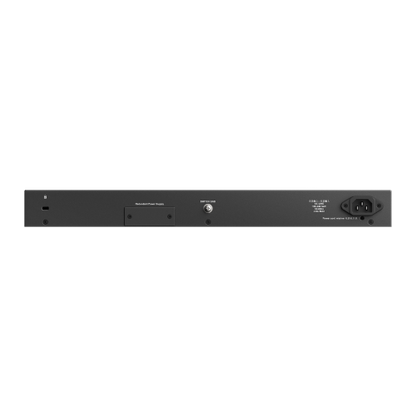

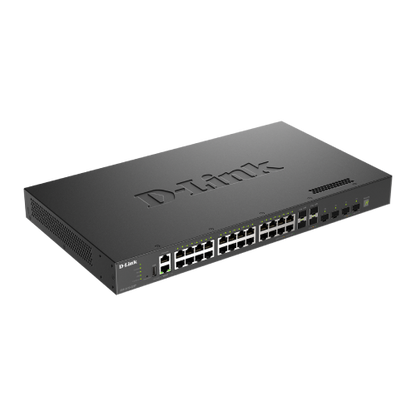

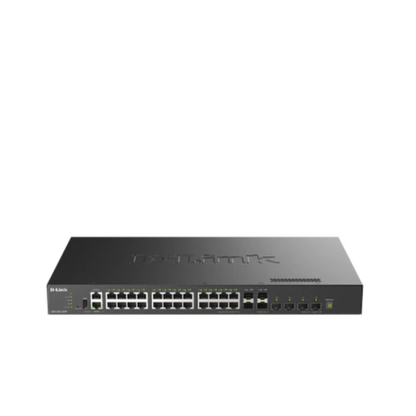

Layer 3 Stackable 10 Gigabit Managed Switches
Layer 3 Stackable 10 Gigabit Managed Switches
Layer 3 Stackable 10 Gigabit Managed Switches
Layer 3 Stackable 10 Gigabit Managed Switches

Layer 3 Stackable 10 Gigabit Managed Switches

SKU

• 10 Gigabit connectivity: 24x 10-Multi-Gigabit Ethernet ports with 4x 10G SFP
• High-speed Uplink ports: 4 x 25G SFP28 ports for uplink connection and stacking
• Scalability and high availability: Physical stacking up to 9 units and virtual stacking up to 32 units.
• Advanced L3 Features: OSPF, RIP/RIPng, IGMP v1/v2/v3, MLD v1/v2, QinQ, 802.1Qbb, RIP, OSPF, VRRP, 802.3ah, 802.1ag, Y.1731 OAM
• Zero Touch Provisioning: Effortless deployment with zero touch provisioning
• Enhanced flow control mechanism: IEEE802.31Qbb Priority-based Flow Control (PFC) for intelligent lossless network and data center bridging

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Why You Want It

Icon

High-Speed Connectivity Options

High-speed connectivity at 10G/25G, using 10G copper and fiber ports, and extending reach with 10G fiber and 25G uplink ports.

Icon

Physical Stacking

Up to 9 units per stack for max. up to 252 10 Gigabit ports. Provide 200 Gbps physical stacking bandwidth. Long-distance stacking over fiber.

Icon

Layer 2 Features

Such as flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, Flow Mirroring, IGMP/MLD Snooping.

Icon

Layer 3 Features

Including up to 256 IP Interfaces, VRRP, static routing, RIPng, OSPF, IGMP and PIM-SM.

Icon

Static Routing

Route Layer 3 traffic between switches, even if they're segmented in VLANs.

Icon

Multiple Images and Configurations

Risk-free firmware and configuration testing.



High availability and flexibility

Utilize stacking technology for seamless network expansion. Scale your network with a simple stacking cable without additional modules. Enhance redundancy, simplify management, and control the entire stack with a single IP address.

High availability and flexibility

World-class reliability

The feature of advanced L2 and L3 functionalities like port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. They include management options such as 802.3ah OAM, 802.1ag CFM, and industry-standard CLI support. With support for multiple images and configurations, the switches provide flexibility.

The switches come equipped with x4 25G SFP28 uplink ports, supporting physical stacking for redundancy. They incorporate G.8032 Ethernet Ring Protection Switching (ERPS) to minimize recovery times to 50 ms. The addition of a USB 2.0 interface allows for storing config files, boot images, and syslog.

For enhanced reliability, the switches support an optional external redundant power supply on all models, ensuring maximum uptime in critical environments.

World-class reliability

Comprehensive security

Incorporating the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL) and Storm Control, our switches provide robust protection. The exclusive D-Link Safeguard Engine is designed to prevent traffic flooding from malicious attacks, ensuring the uptime of your business network.

Enhance user access control with IP-MAC-Port Binding, allowing you to bind a source IP address with its associated MAC and define the port number. Additionally, DHCP Snooping enables the switch to learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.

Comprehensive security
Easy Access Control policies

Easy Access Control policies

They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

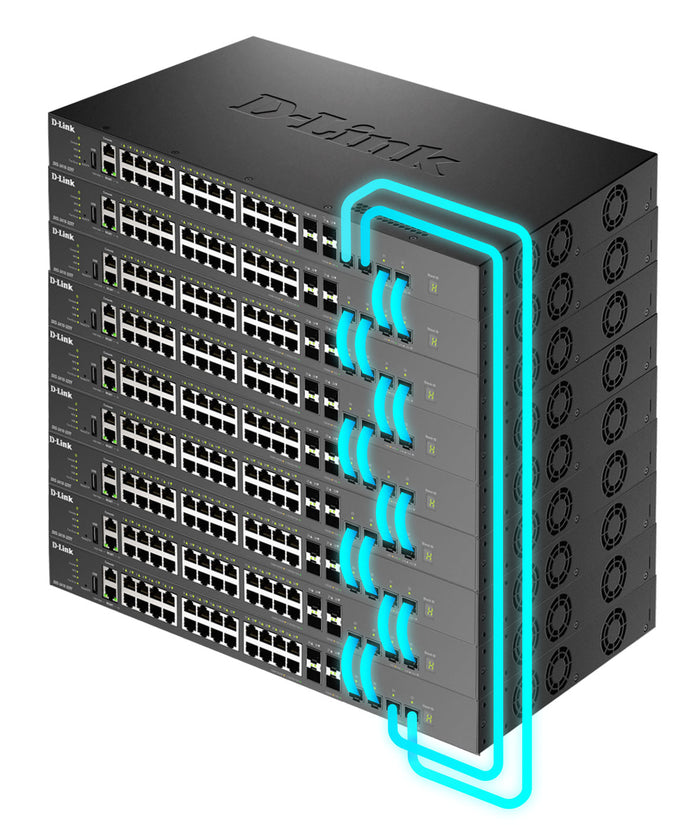

A stack above the competition

A stack above the competition

Unlock the full potential of your network infrastructure. Utilize the high switching capacity of up to 760Gbps to eliminate bottlenecks and maintain optimal network efficiency even during peak times, enabling you to effortlessly handle demanding network environments.

Downloads Datasheets M2M Solution Guide

Tech Specifications

Hardware
Port
  • 24 x 100M/1/2.5/5/10GBASE-T ports
  • 4 x 10G SFP+ ports
  • 4 x 10/25G SFP28 ports
  • 1 x RJ-45 Console port
  • 1 x RJ-45 Management port
  • 1 x USB 2.0 port
Ventilation
  • 3 x Smart fans
General
Switch Capacity
  • 760 Gbps
64-Byte Packet Forwarding Rate
  • 565.44 Mpps
Packet Buffer Size
  • 4 MB
MTBF
  • 434,433.88 hours
Acoustic
  • Max:53.0 dB
  • Min:28.8 dB
Maximum Heat Dissipation
  • 371.92 BTU/h
Power Input
  • 100 to 240 V AC
  • 50 to 60 Hz internal power supply
Max Power Consumption
  • Max:109.0 W
  • Standby:41.8 W
Switching Capacity
  • 760 Gbps
Physical
Dimensions
  • 441.0 x 250 x 44.0 mm (17.36 x 9.84 x 1.73 in)
Operating Temperature
  • 0 - 50 °C (32 - 122 °F)
Storage Temperature
  • -40 - 70°C (-40 - 158 °F)
Operating Humidity
  • 10% - 90% RH
Storage Humidity
  • 5% - 90% RH
Weight
  • 3.73 kg (8.22 lbs)
