Icon

10 Gbps Ports

10 Gbps ports accelerate data transmission speeds, meeting higher bandwidth demands and boosting network performance

Icon

25G Uplink

25G uplink ports deliver ultra-fast server connectivity, ensuring seamless scalability and optimized network performance​

Icon

Management UI

Equipped with an RJ-45 console, full CLI, multilingual web GUI, and Nuclias Network Controller for efficient device management

Icon

High-Power PoE

Delivers IEEE 802.3bt per port with 470W total power, supporting demanding devices like digital signage and Wi-Fi 7

Icon

Digital Signatures

D-Link implements digital signatures to protect firmware and software, ensuring integrity and trusted source verification

Icon

Advanced Networking Features

Q-in-Q VLAN extension, time-based ACLs for dynamic control, and DHCP Relay with Option 82 for flexible management

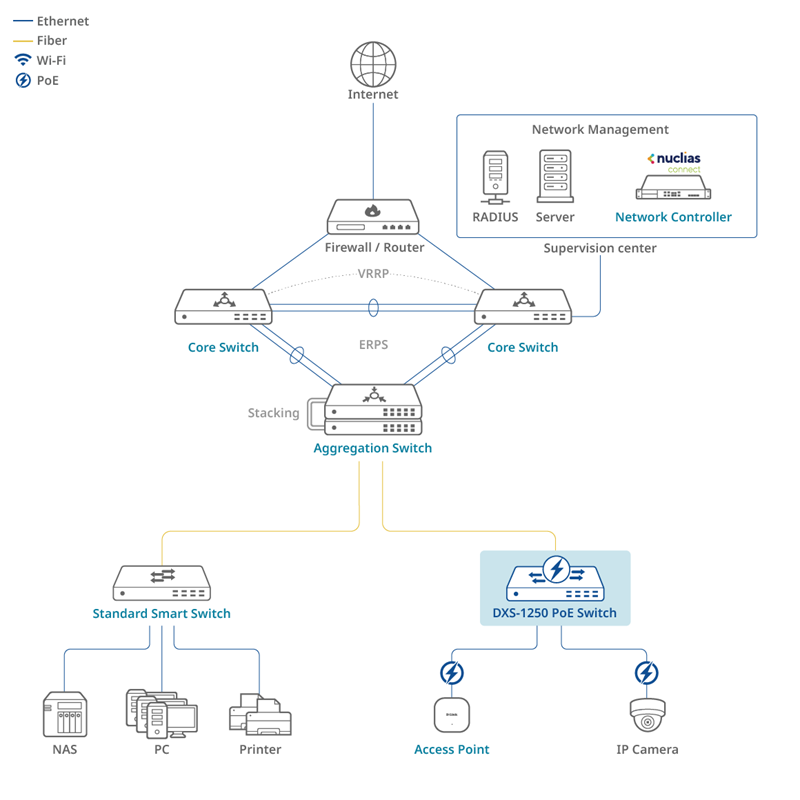

Connection Diagram

5G PoE Diagram

Applications

Enterprise

Enterprise

• Enhanced performance​
• Streamlined control​
• Affordable scalability​
• Versatile connectivity​

Education

Education

• Uninterrupted connectivity​
• Enriched digital learning​
• Safe and controlled access​
• Reliable Network​

Business

Business

• Stronger data protection​
• Optimized workflows​
• Simplified device control​
• Scalable growth support

Building

Building

• Comprehensive coverage​
• Strengthened safety​
• Easy tenant control​
• Reliable high-performance

Tech Specifications

Hardware
Ports
  • 24 x 10GE
  • 4 x 25G SFP28
Console Port
  • Yes
Fan
  • 2 Internal Fans
Wireless
Wireless
Interface
  • 24 x 10GE PoE
  • 4 x 25G SFP28
Switch Capacity
  • 680 Gbps
Max. Packet Forwarding Rate
  • 505.92 Mpps
General
PoE
  • PoE++, with 470W Power Budget
PoE Standard
  • IEEE 802.3af/at/bt
PoE Ports
  • Port 1 ~ 24
PoE Budget
  • 470W
Surge Protection
  • 6kV
Maximum Power Consumption
  • 630.92W (PoE on)
Power Supply Type
  • Internal
