Unrivaled Speed with 5G, Revolutionary Experience

AX3000 – Powerful Wi-Fi 6

Connect up to 256* Devices

Easily handle dozens of devices streaming and gaming at the same time

Plug and Play, Enjoy 5G Network Everywhere

Your World, Connected. Instantly .

D-Link Mobile Wi-Fi Routers provide effortless, plug-and-play Wi-Fi. Enjoy robust, reliable internet access for your fast-paced lifestyle, whether you're using a Nano-SIM for immediate mobile Wi-Fi or a wired Ethernet connection for fixed setups. No complex configuration required.

Tech Specifications

Hardware

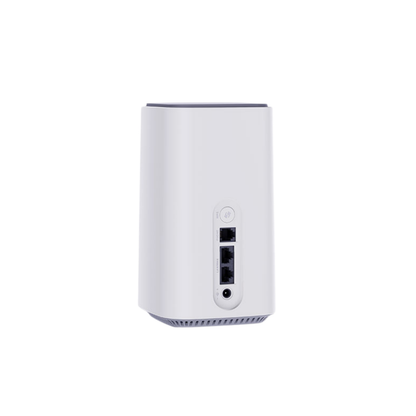

Device Interfaces

• 1 x 10/100/1000/2500 Mbps Ethernet LAN Port, 1 x 10/100/1000/2500 Mbps Ethernet WAN/LAN port,
• 1 x USB Type C Port, 1 x LTE SIM/USIM Slot, 1 x Reset Hole, 1 x WPS Button, 1 x Power Port, 1 x RJ11 Phone jack

5GNR Sub6 GHz

• N1/3/5/7/8/20/28/38/n40/41/77/78

LTE Cat20 FDD

• LTE FDD: B1/B3/B5/B7/B8/B20/B28/B42/B43

LTE Cat20 TDD

• LTE TDD:B38/B40/B41

WCDMA

• B1, B5, B8

WAN Interface

• DHCP
• Static IP
• PPPoE (PPPoE Pass-through)

Wireless
Wireless

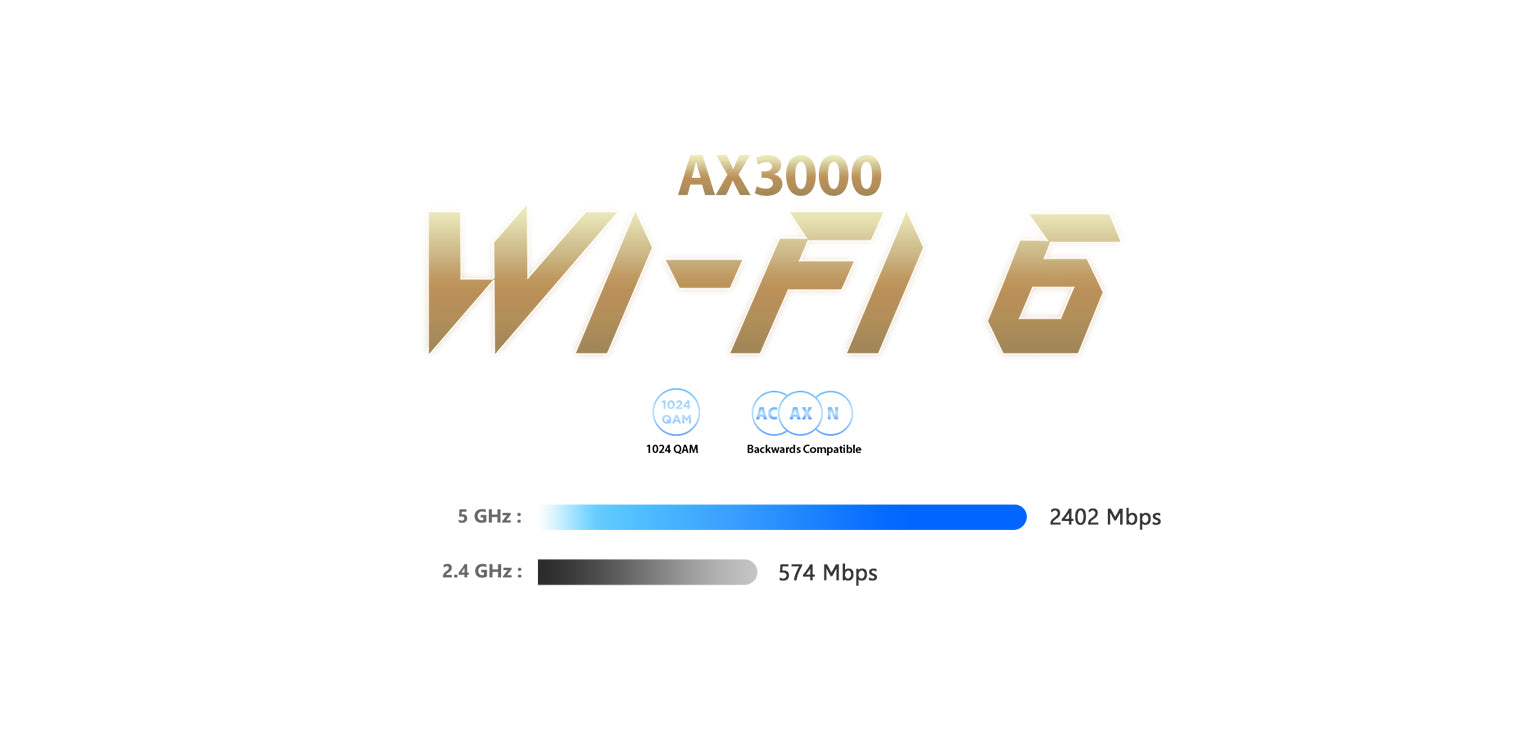

Wi-Fi Data Rate (theoretical value)

• 2T2R 2.4GHz 802.11b/g/n / ax, 574 Mbps
• 2T2R 5.1GHz 802.11a/n/ac/ax, 2402Mbps
•2T2R 5.8GHz 802.11a/n/ac/ax, 2402Mbps

Wireless IEEE Standard

• 802.11a/b/g/n/ac/ax

General
LED Power

• Power, WLAN, 4G LTE, 5G

Certifications

• CE , RoHS

Hardware version

• A3

Firewall

• DoS , IP/MAC Address Filtering

Device Management

• Web UI

Security

• WEP (128bits), 802.11i 128-bit TKIP/AES

Physical
Dimension

• 107 x 107 x 185mm (L*W*H)

Weight

• 810g

Power Input

• 12 V 2 A

Operating Temperature

• -10 to 40 °C
