Tech Specifications

Hardware

Chipset
BCM6765+ BCM6711A0KEFBG

CPU Frequency
  • Quad-core, 2.0-GHz, ARMv8-A compatible
Memory
  • 512MB DDR4
Flash
  • 256MB NAND Flash

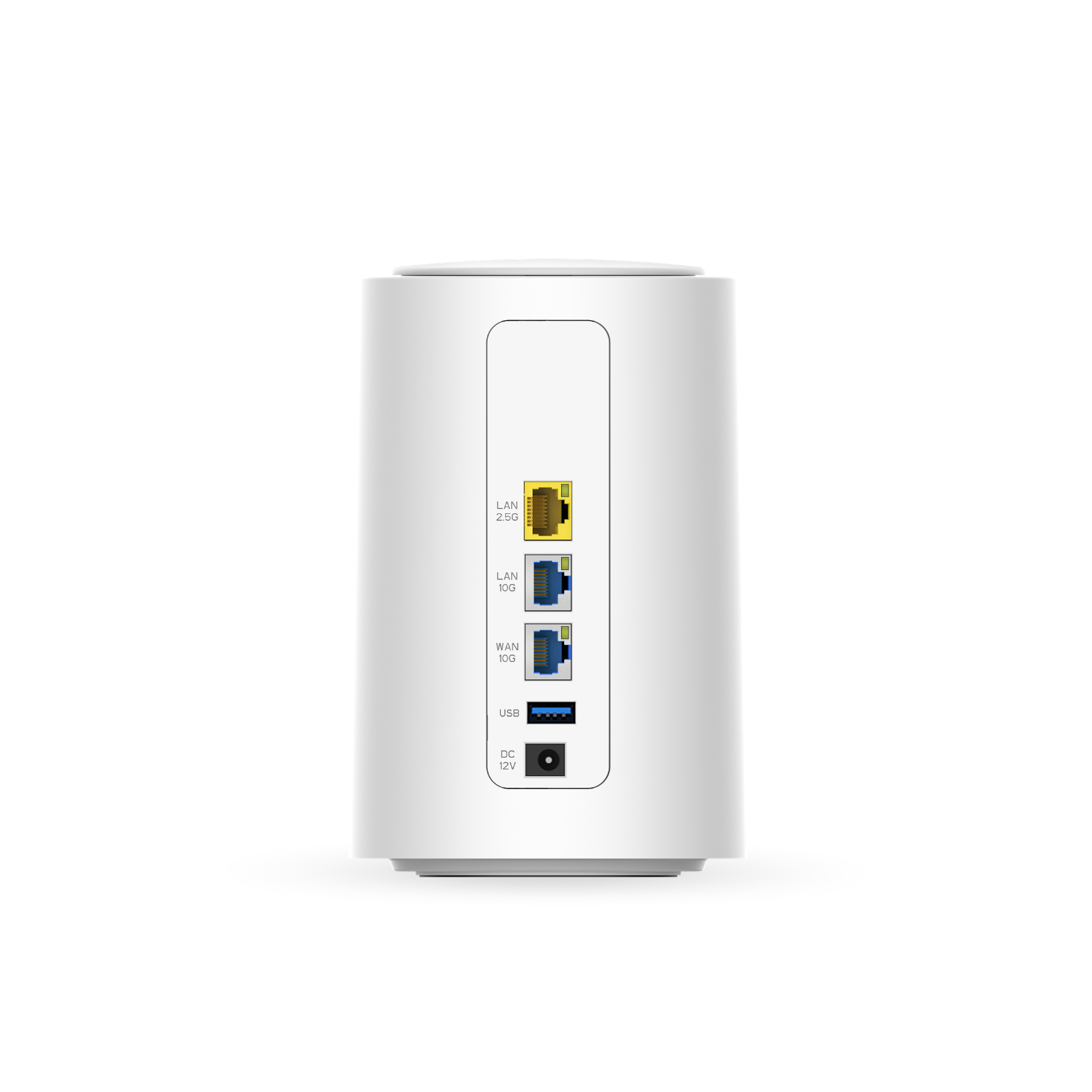

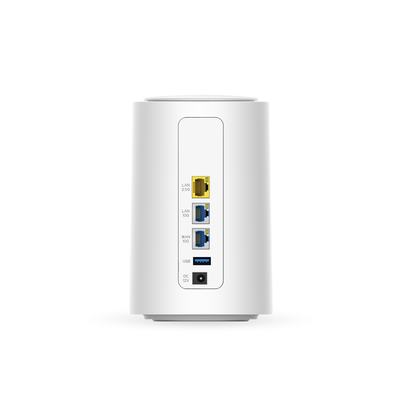

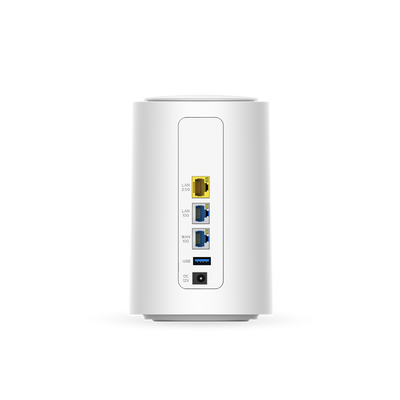

Device Interfaces
  • 1 x RJ45 100M/1000M/2.5G LAN Ethernet
  • 1 x RJ45 100M/2.5G/5G/10G LAN Ethernet
  • 1 x RJ45 100M/1000M/2.5G/5G/10G WAN Ethernet
  • 1 x WPS Button
  • 1 x Reset Button
  • 1 x Power Jack
  • 1 x USB 3.2 (Optional)
  • 1 x Phone Jack (Optional)

D-Link will provide security updates for the D-Link DPN-BE9600GR until 31st Dec 2029, and extended support may be provided after the stated date and D-Link has the final decision on every security patch adoption and release.

Wireless
Wireless
WIFI
  • 3T3R 2.4GHz 802.11b/g/n/ac/ax/be, 1.03Gbps
  • 2T2R 5.8GHz 802.11a/n/ac/ax/be, 2.88Gbps
  • 2T2R 6GHz 802.11a/n/ac/ax/be, 5.76Gbps
WIFI Antenna
  • 3 x 3dBi internal 2.4G antenna
  • 2 x 5dBi internal 5.8G antenna
  • 2 x 5dBi internal 6G antenna
Physical
Dimensions
  • 109.5 x 109.5 x 168 mm
Weight
  • 550 grams (1.21 pounds)
Temperature
  • Operating: 0°C~40°C
  • Storage: -20°C ~ 70°C
Operating Humidity
  • 5%~95% (typical)
Power Supply
  • 12V/2A
Regulation Compliance
  • CE
Safety Regulations
  • UL
Green Standard
  • RoHS
