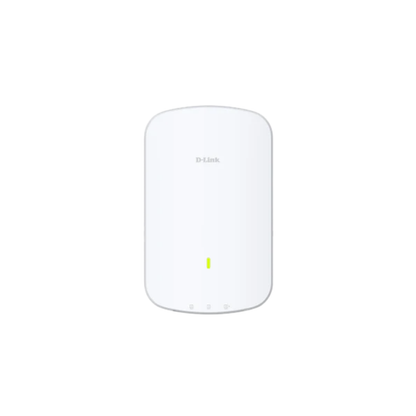

• Wi-Fi 6 AX3000, up to 3.0 Gbps • High efficiency, low latency performance • 2x2 MIMO with band steering and airtime fairness • 3 x downlink gigabit ports, one for PoE passthrough • 802.3at PoE for easy, power-free installation • Enhanced Open secures public networks • WPA3 encryption for enhanced Wi-Fi security • Customizable Captive Portal for user access • Compact wall-plate design fits into a room or office • Centrally managed via Nuclias Network Controller
Delivers AX3000 dual-band speeds up to 574 Mbps (2.4 GHz) and 2402 Mbps (5 GHz) for faster Wi-Fi experience
Effortless PoE Installation
802.3at PoE-powered for easy, single-cable installation without extra power sockets, perfect for hospitality and office spaces
Expand with PoE Out
Three Gigabit downlink ports for wired expansion and one PoE passthrough port to power devices like IP phones or cameras
Customizable Guest Access
Supports captive portal with per-SSID captive portals for branded guest Wi-Fi, ideal for hotels, dorms, and public venues
Enterprise-Grade Security
Ensures secure, segmented access with WPA3, Enhanced Open, VLAN/SSID mapping, and MAC control for secure and segmented connectivity
Centralized Management
Easily automate, monitor, and scale your network with centralized management via Nuclias Network Controller
Reliable In-Room Wi-Fi

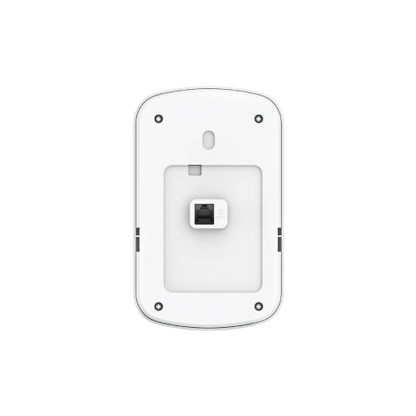

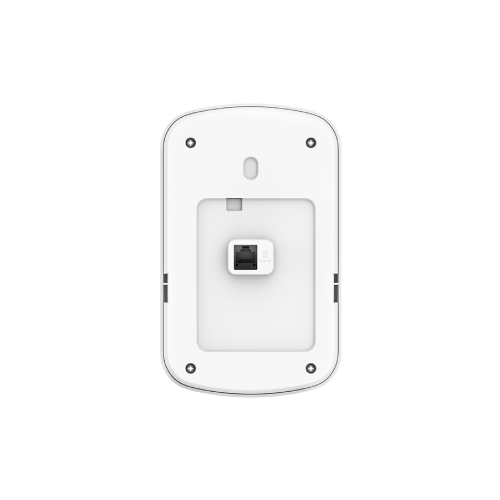

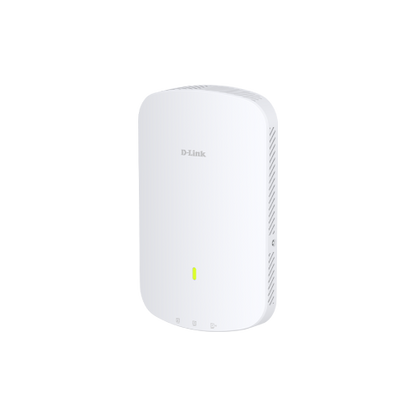

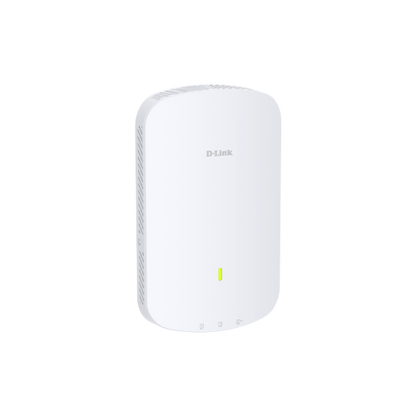

Designed for in-room coverage in hotels, dormitories, and meeting spaces, the wall-plate Access Point (AP) delivers strong, stable Wi-Fi throughout any room. PoE-powered for simple single-cable installation, it easily mounts on US or EU standard junction boxes for flexible, seamless deployment.

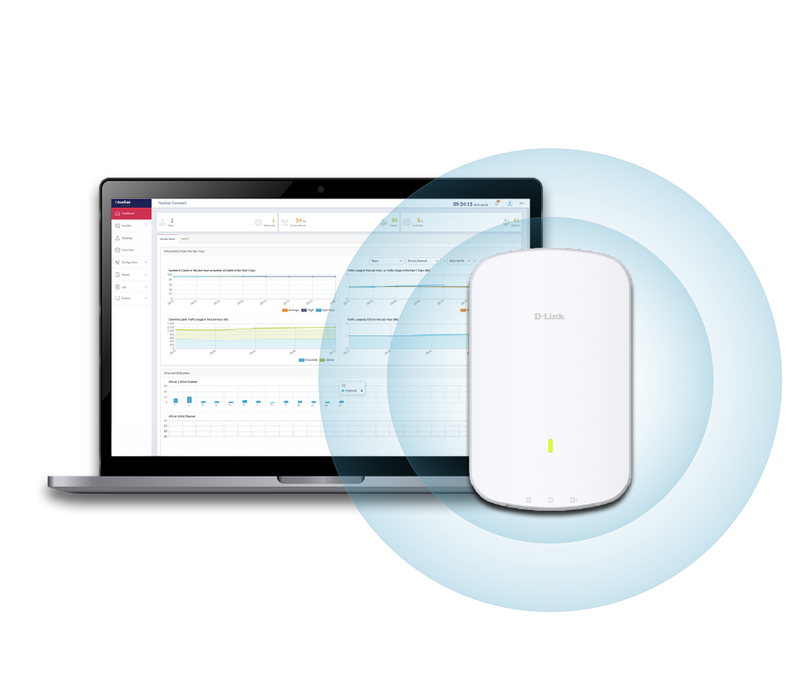

Centralized Network Control
The DAP-X3060W integrates effortlessly with D-Link’s Nuclias Network Controller and management platform, providing centralized, remote network control from anywhere. This solution simplifies management, automation, and scalability, while built-in analytics and reporting deliver actionable insights down to each access point for smarter, data-driven decisions.

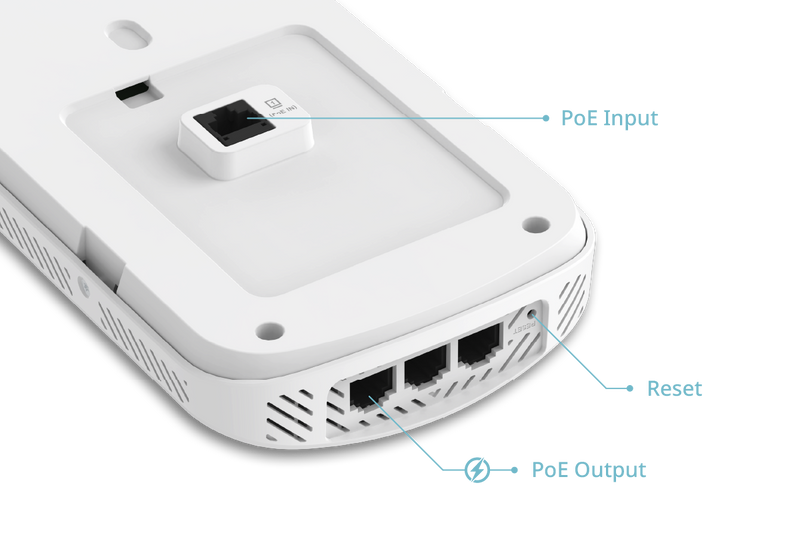

Full Gigabit Ports with PoE Out
Equipped with one uplink and three downlink Gigabit ports, the Access Point (AP) extends wired connectivity for VoIP phones, PCs, printers, or smart TVs. One downlink port supports PoE passthrough, allowing you to power an additional device without the need for a separate power supply.

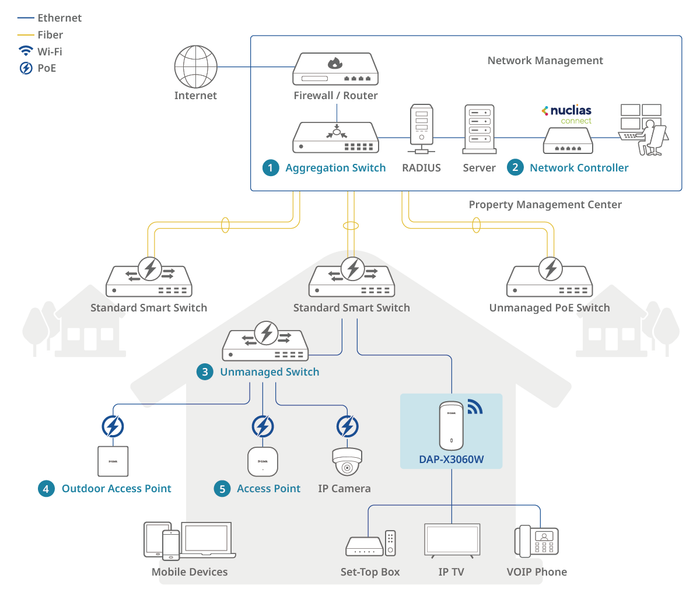

Dormitory (Education)
User benefits :
• Stable Wi-Fi 6 AX3000 coverage for dorm rooms
• Supports multiple devices simultaneously
• Extra LAN and PoE Out ports for PCs, TVs, and consoles
• Wall-plate PoE design for easy dorm deployment
• VLAN per SSID and captive portal for user segregation
• WPA3 and MAC ACL safeguard academic and student data
Learn more :
• Aggregation Switch : DXS-3130-32S
• Network Controller : DNH-1000
• Unmanaged Switch : DMS-108P
• Outdoor Access Point : DAP-X3060OU
• Ceiling Mount Access Point : DAP-X3060

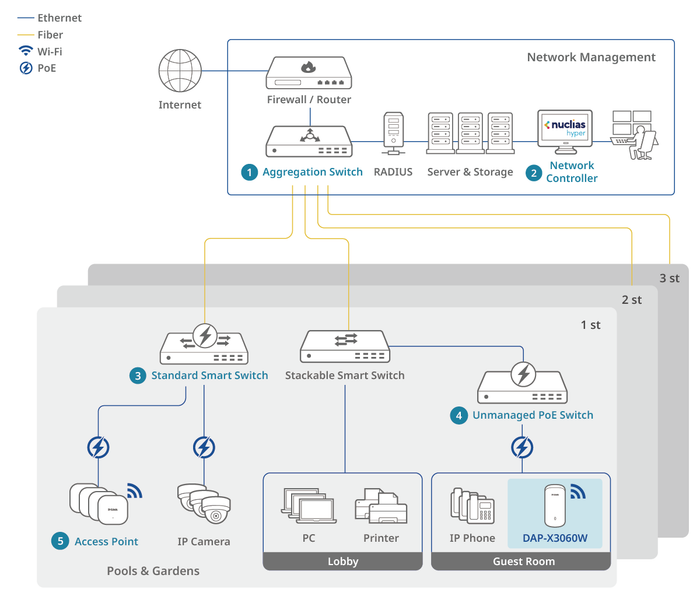

Hotel (Buildings)
User benefits :
• Strong, stable Wi-Fi 6 AX3000 coverage in every room
• Fast, reliable connectivity for live streaming and conferences
• Captive portal and per-SSID VLAN for secure, branded guest Wi-Fi
• Extra LAN and PoE Out ports for IP phones, TVs, or printers
• PoE wall-plate design fits US/EU junction boxes
• WPA3 and MAC control protect guest and business networks
Learn more :
• Aggregation Switch : DXS-3130-32S
• Network Controller : DNH-3000
• Standard Smart Switch : DMS-1250 Series
• Unmanaged Switch : DMS-108P
• Ceiling Mount Access Point : DAP-X3060

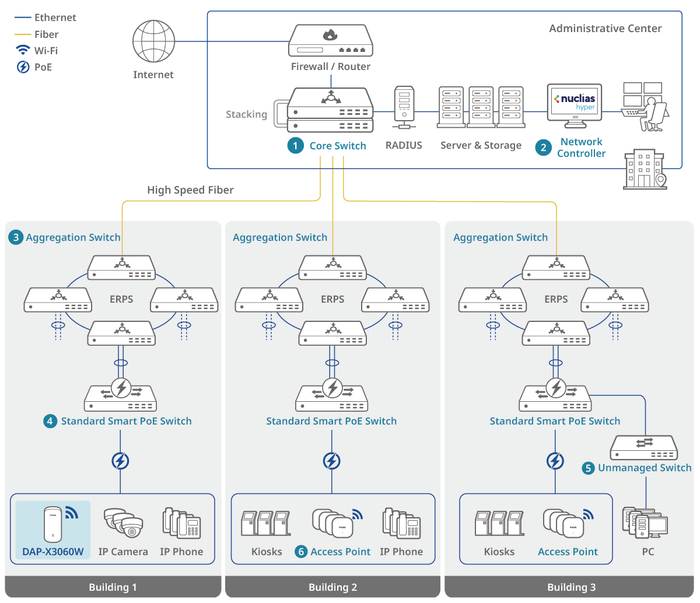

High-Rise Community (Buildings)
User benefits :
• Wi-Fi 6 AX3000 delivers strong in-room coverage
• Ideal for 4K, calls, and multi-device use
• LAN ports + PoE passthrough for TVs and devices
• PoE wall-plate fits US/EU boxes for easy install
• VLAN and MAC ACL isolate resident traffic
• Captive portal enables secure guest Wi-Fi
Learn more :
• Core Switch : DQS-3630-56S ( Coming Soon )
• Network Controller : DNC-5000
• Aggregation Switch : DXS-3130 Series
• Standard Smart PoE Switch : DMS-1250-18P
• Unmanaged Switch : DMS-1016
• Ceiling Mount Access Point : DAP-X3060
Ultra-Fast AX3000 Performance
Experience ultra-fast Wi-Fi 6 performance with speeds up to 574 Mbps (2.4 GHz) and 2402 Mbps (5 GHz), ensuring high capacity, low latency, and seamless connectivity—perfect for streaming, video conferencing, and multi-device environments in hospitality and enterprise networks.
Applications
Dormitory (Education)
Hotel (Buildings)
High-Rise Community (Buildings)
Need help?
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specifications
Wireless
Interfaces
1 x Gigabit Ethernet PoE LAN port (uplink)
3 x Gigabit Ethernet LAN port (downlink)
(One PoE passthrough port to power a connected device)
Antenna type
2 x Dual-band internal antennas
IEEE Standard
IEEE 802.11ax/ac/n/g/b/a
IEEE 802.3u/ab/an
IEEE 802.3at PoE
Security Protocol
WPA/WPA2/WPA3™ Personal/Enterprise
SSID broadcast disable
MAC address access control
WEP 64/128-bit
Enhanced Open
Internal RADIUS server
Operating Frequency
2.4 - 2.483 GHz
5.15 - 5.35 GHz
5.47 - 5.85 GHz
Device Management
Nuclias Connect
Web (HTTP/HTTPS)
Telnet/SSH
General
Power Supply
802.3at PoE
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
Physical
Dimensions
195.68 x 120.72 x 40.2 mm
Operating Temperature
0 - 40 °C (32 - 104 °F)
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
