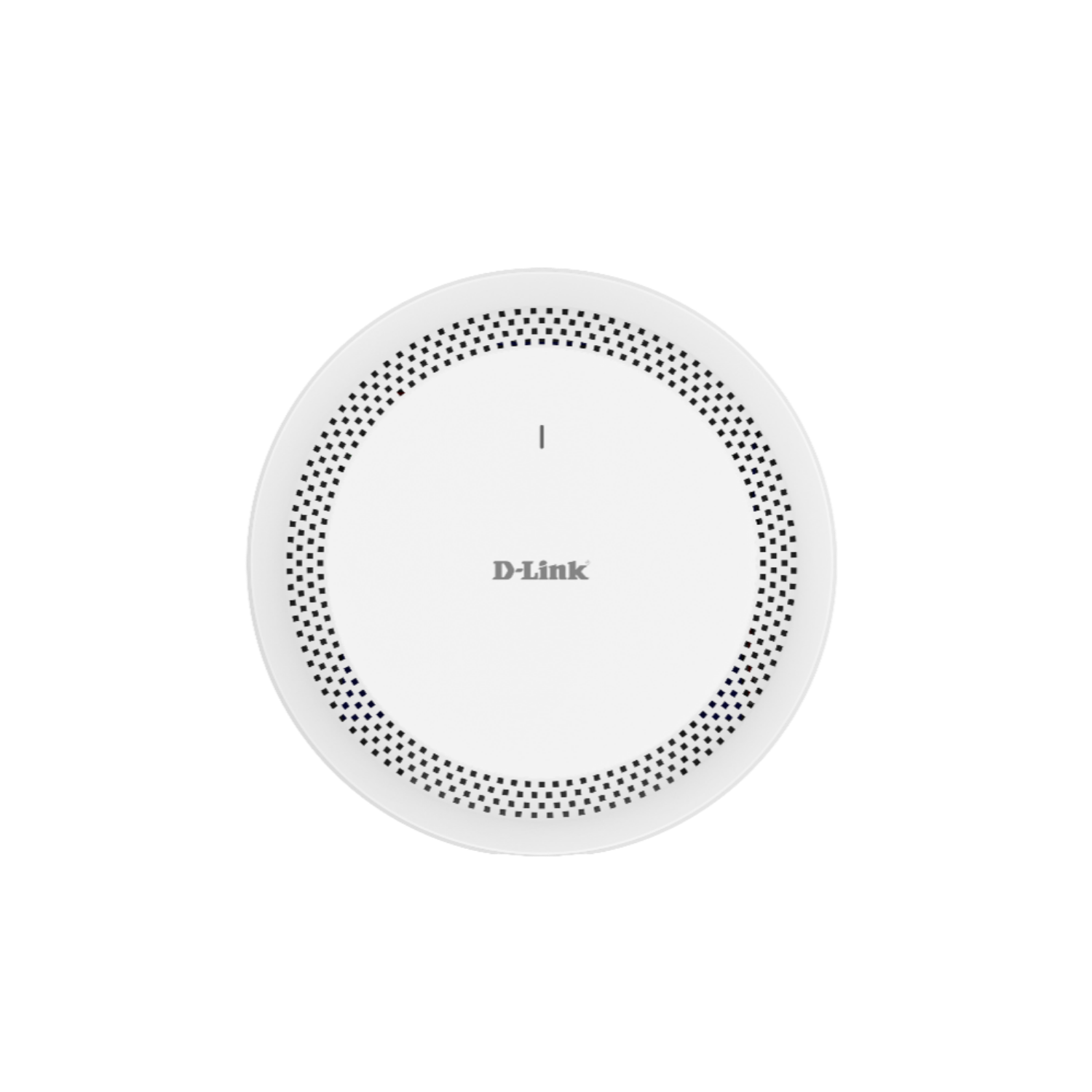

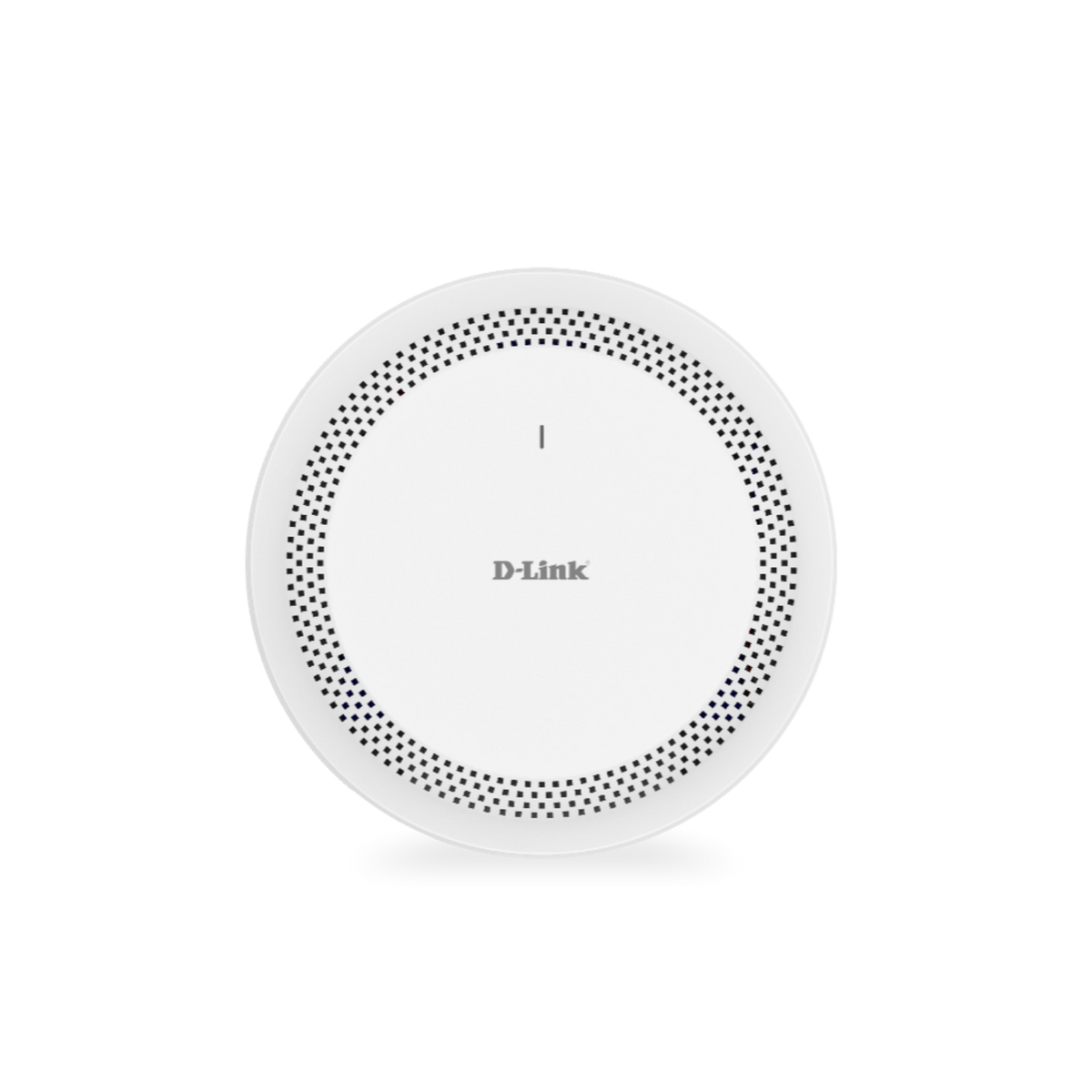

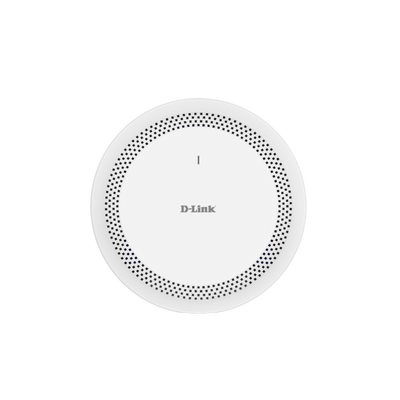

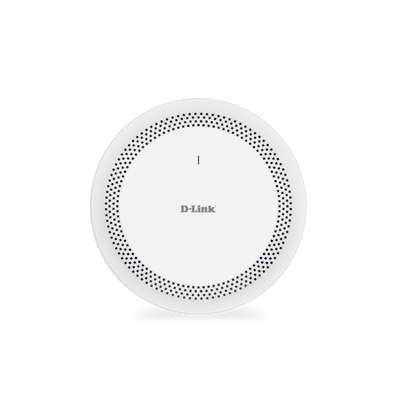

D-Lite Cloud-Managed AX3000 Access Point

D-Lite Cloud-Managed AX3000 Access Point

SKU
  • Cloud-Based Management
  • Zero-Touch Deployment
  • Intuitive User Interface
  • Unlimited Scalability
  • Intelligent Band Steering
  • Bandwidth Optimization
  • Automatic Channel Management
  • Flexible Authentication with Customizable Captive Portal, 802.1X, and RADIUS Server
  • Social Login for Guest Wi-Fi Access
  • End-to-End Encryption
  • Event and Change Logs
  • Over-the-Air (OTA) Firmware Upgrades
  • Real-Time Traffic Reporting and Analytics*
  • Automated Monitoring and Alerts
  • Multi-Tenant Management with Role-Based Administration
  • Interactive Network Map View
  • AI-Powered Diagnostics
  • Supports 500+ Concurrent Wi-Fi Client Devices

Pairs well with

Ships within 1-2 business days for in-stock items

Complimentary shipping above $80

* Warranty Details

Tech Specifications

Hardware
Device Interfaces
  • 1 x 10/100/1000 Mbps Ethernet Port
  • 1 x 10/100/1000 Mbps Ethernet PoE Port
  • IEEE 802.11ax Wi-Fi 6
Power Input

• IEEE 802.3at Power over Ethernet (PoE) on LAN 1
• Power adapter: 12 V DC, 1.5 A

Power Consumption

• PoE: <12 W
• Power adapter: <12 W

Maximum Output Power

• 2.4 GHz: 23 dBm
• 5 GHz: 23 dBm

Wireless
Wireless
Antenna
  • Internal omni-directional Wi-Fi antennas
  • - 2 x 3 dBi 2.4GHz
  • - 2 x 3 dBi 5GHz
Standards

• IEEE 802.11a/b/n/g/ac/ax
• IEEE 802.3az Energy-E cient Ethernet (EEE)
• IEEE 802.3at Power over Ethernet (PoE)
• IEEE 802.11h(DFS)
• IEEE 802.3i/u/ab|
• IEEE 802.3x Flow Control
• IEEE 802.11e(WMM)
• IEEE 802.11k/v/r

Data Signal Rate

• 2.4 GHz: Up to 574 Mbps
• 5 GHz: Up to 2402 Mbps

Modulation Schemes

• OFDM - BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM
• DSSS - DBPSK, DQPSK, CCK

Maximum SSIDs

• Supports up to 16 SSIDs per device
• - Up to 8 SSIDs per wireless band

General
Security Protocols
  • 192-bit Enterprise encryptio
  • Latest 802.11 128-bit AES with SAE
  • 128-bit Enterprise encryption
  • 802.11 128-bit AES
  • MAC address flltering
  • RADIUS server authentication
  • Captive portal
  • Station isolation
  • Guest isolation
Physical
Dimension

• 200.6 x 200.6 x 40mm

Weight

• Without Mount: 491g

Operating Temperature

• 0 to 40 °C

Storage Temperature

• -30 to 70 °C

Humidity

• 5% to 95% non-condensing

Mean Time Between Failure (MTBF)

• >400,000 hours

Mounting Options

• Ceiling mount
• Wall mount
• Desktop (horizontal)

Certications

• CE Class B
• FCC Class B
• UL-2043
• IC Class B
