$169.00
DMS-F109TS
  • 8* 100/1000/2500Mbps RJ45 ports+1* 10G SFP+ optical port
  • Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, and IEEE 802.3x standards
  • RJ45 port supports 100/1000/2500bps adaptive
  • Supports automatic port flipping (Auto MDI/MDIX)
  • The panel indicator lights will monitor the working status and assist in fault analysis
  • Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
  • Support QoS data priority

Pickup available at D-Link Service Centre

Usually ready in 24 hours

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80

Key Features and Benefits

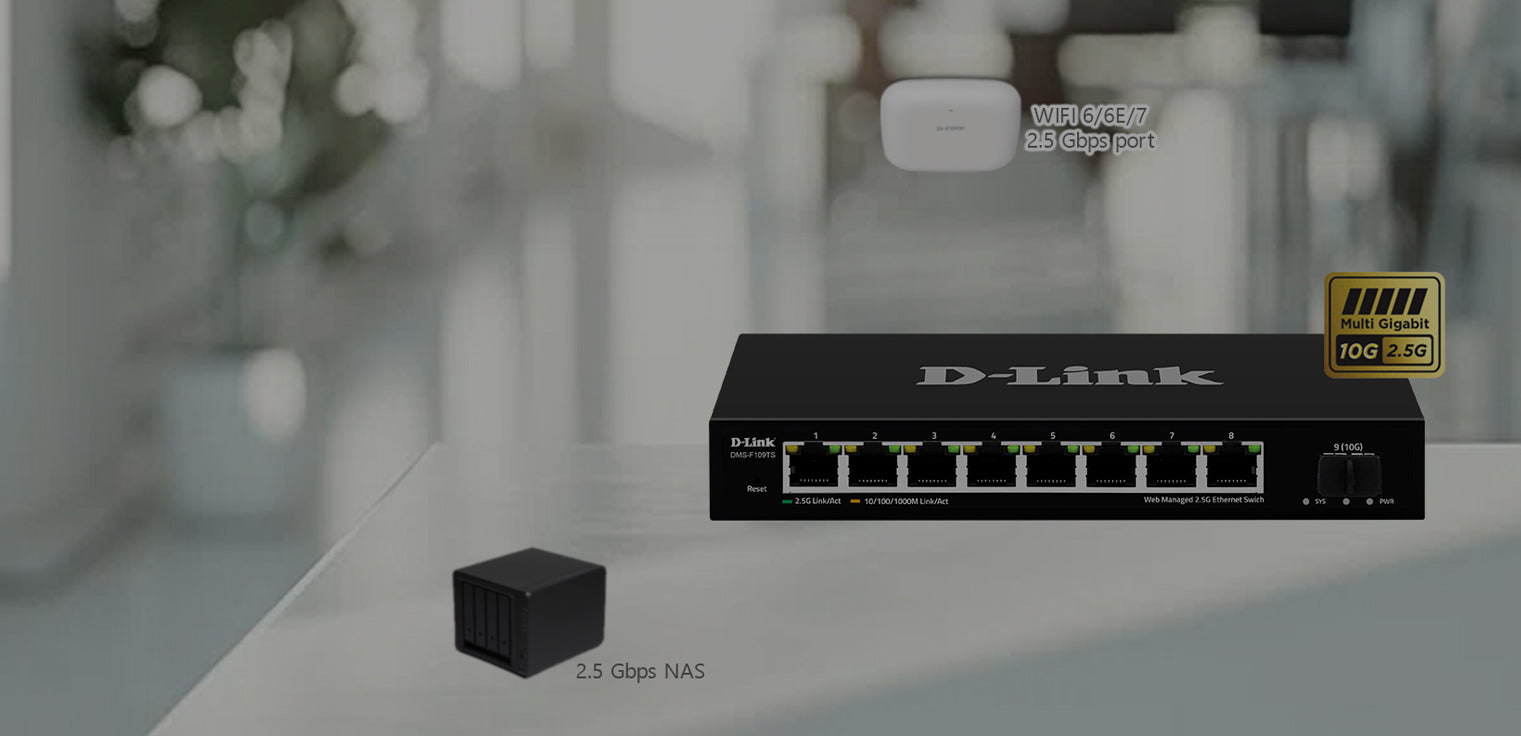

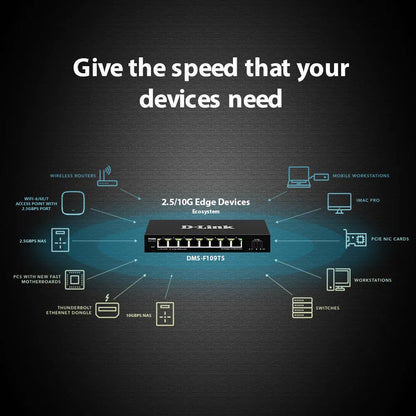

Give the speed that your devices need

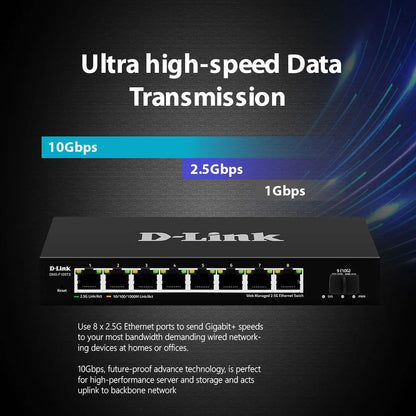

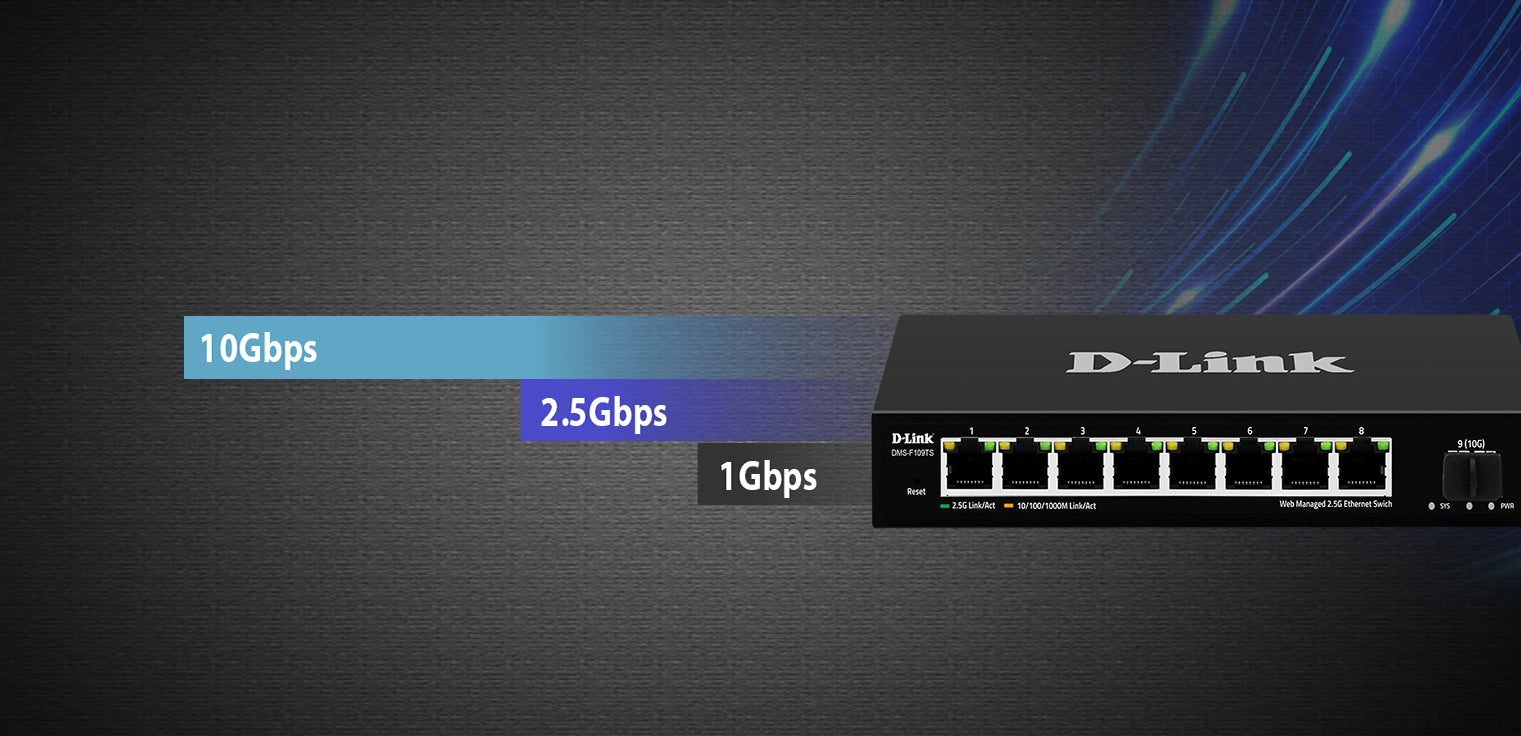

Ultra high-speed Data Transmission

Use 8 x 2.5G Ethernet ports to send Gigabit+ speeds to your most bandwidth demanding wired networking devices at homes or offices.
10Gbps, future-proof advance technology, is perfect for high-performance server and storage and acts uplink to backbone network

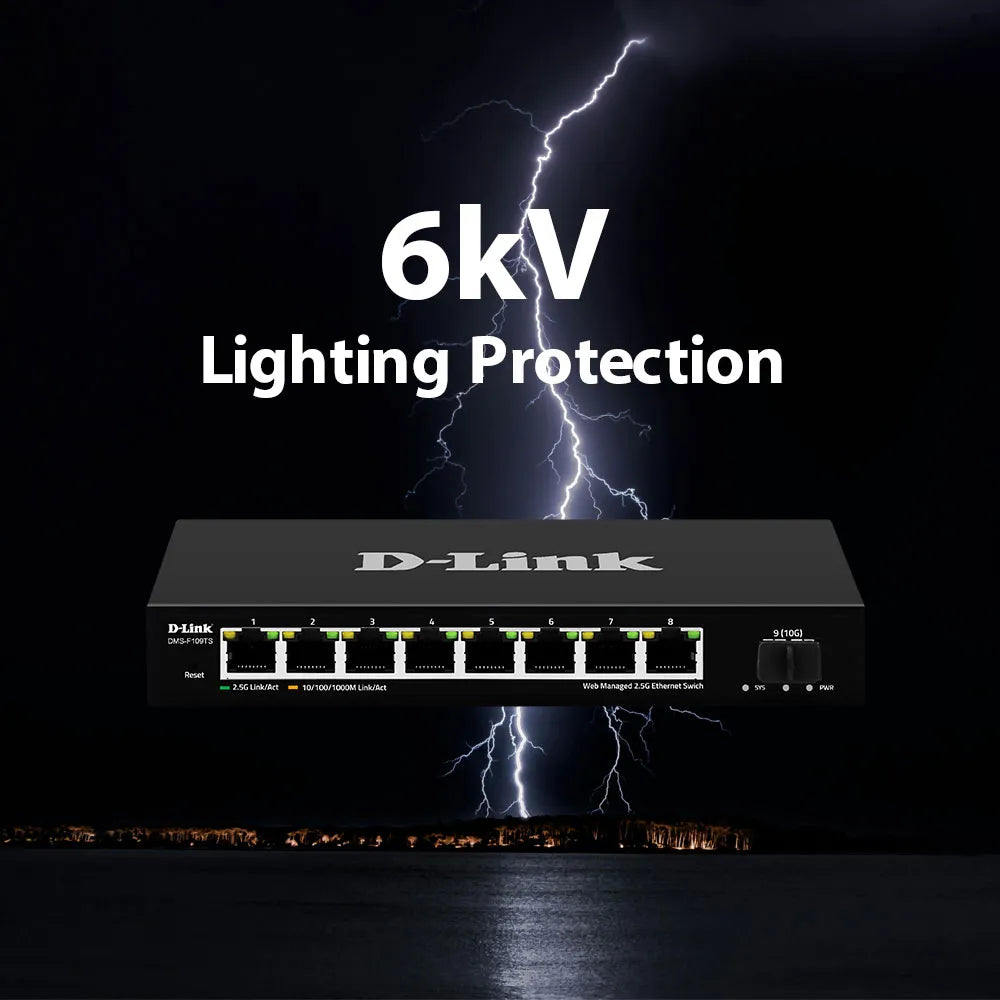

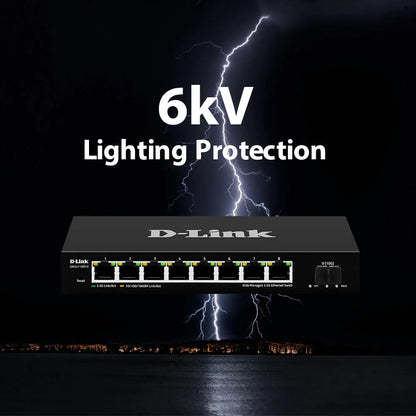

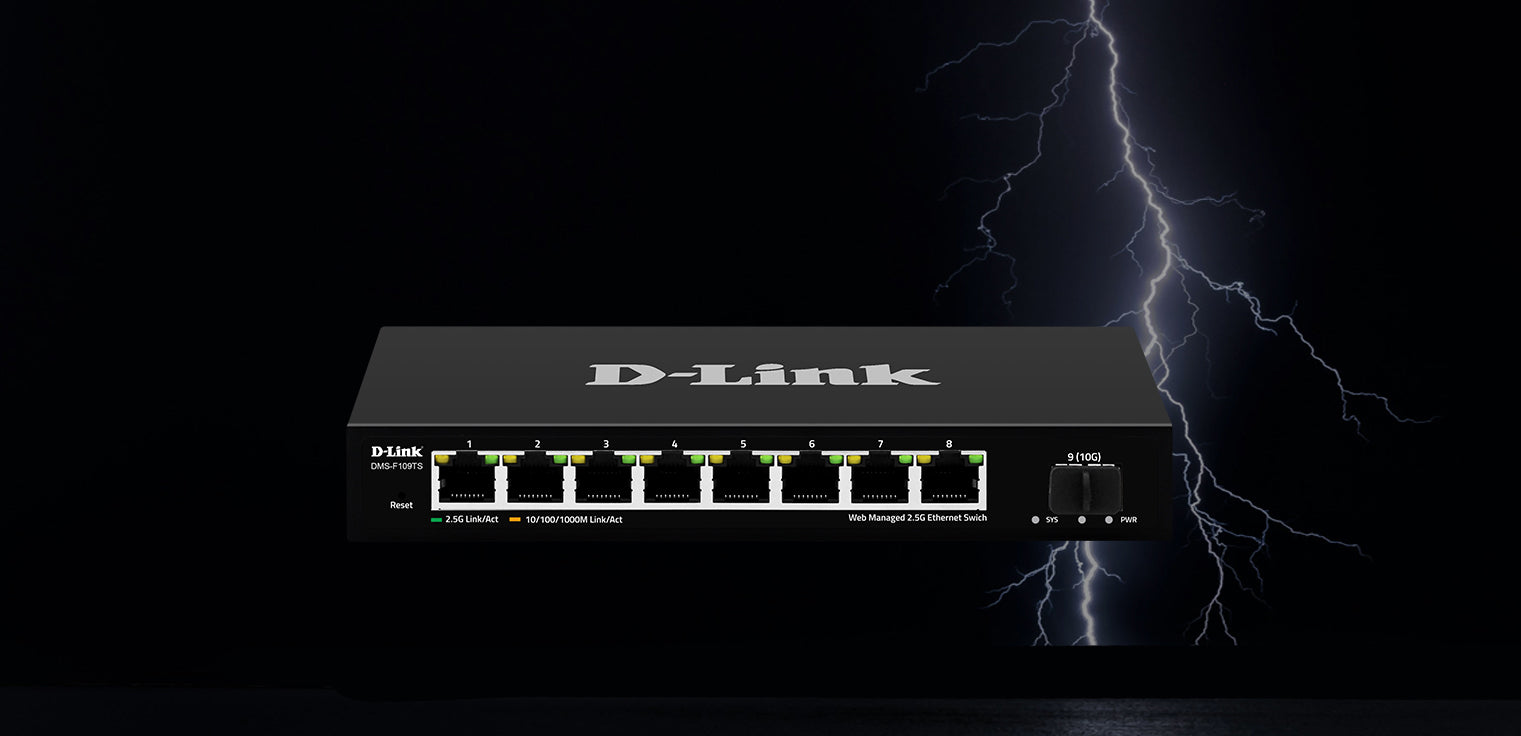

6kV Lighting Protection

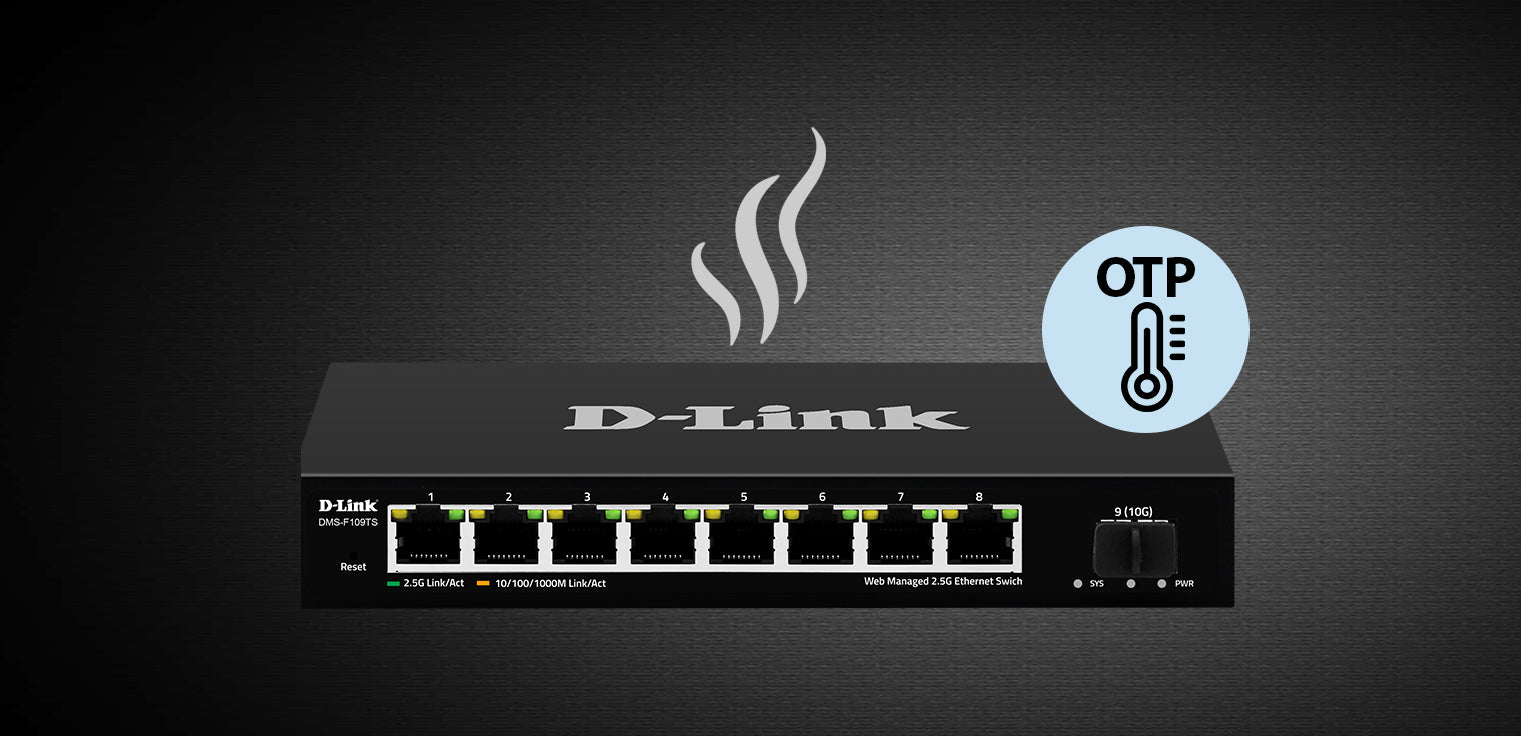

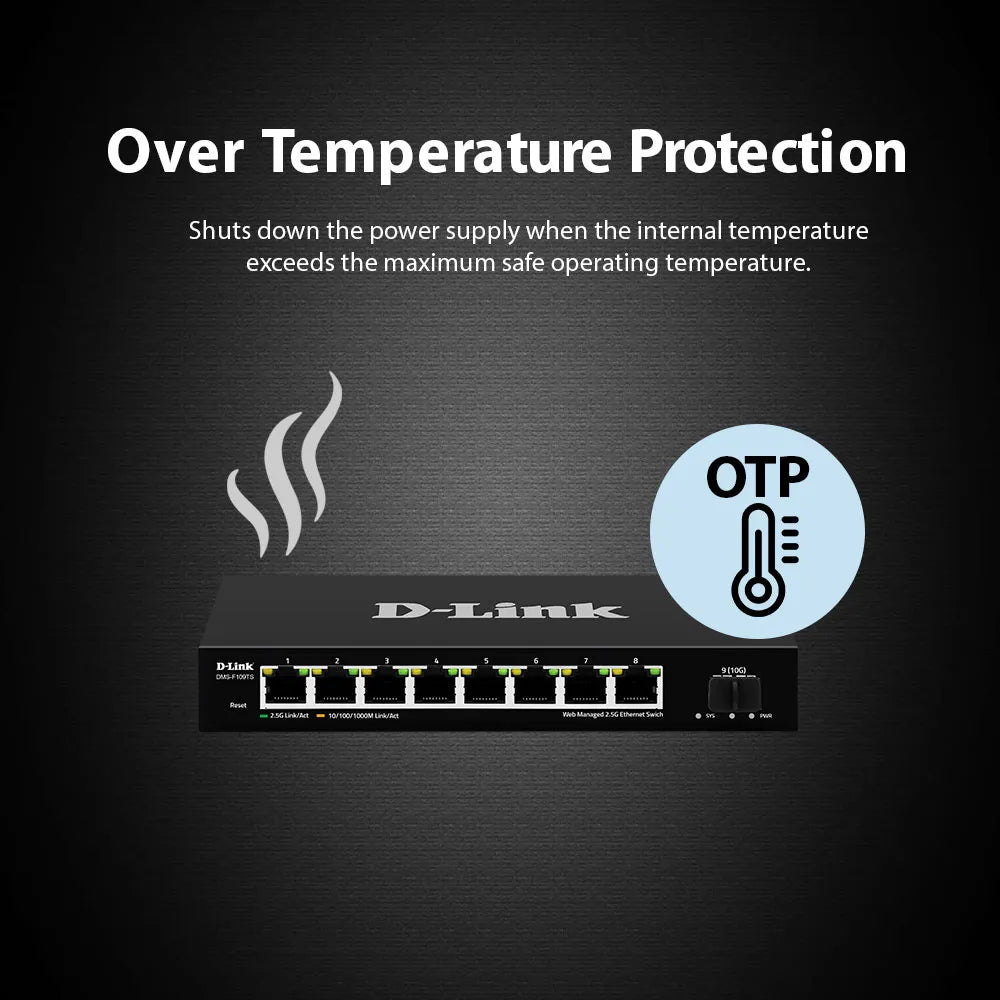

Over Temperature Protection

Shuts down the power supply when the internal temperature
exceeds the maximum safe operating temperature.

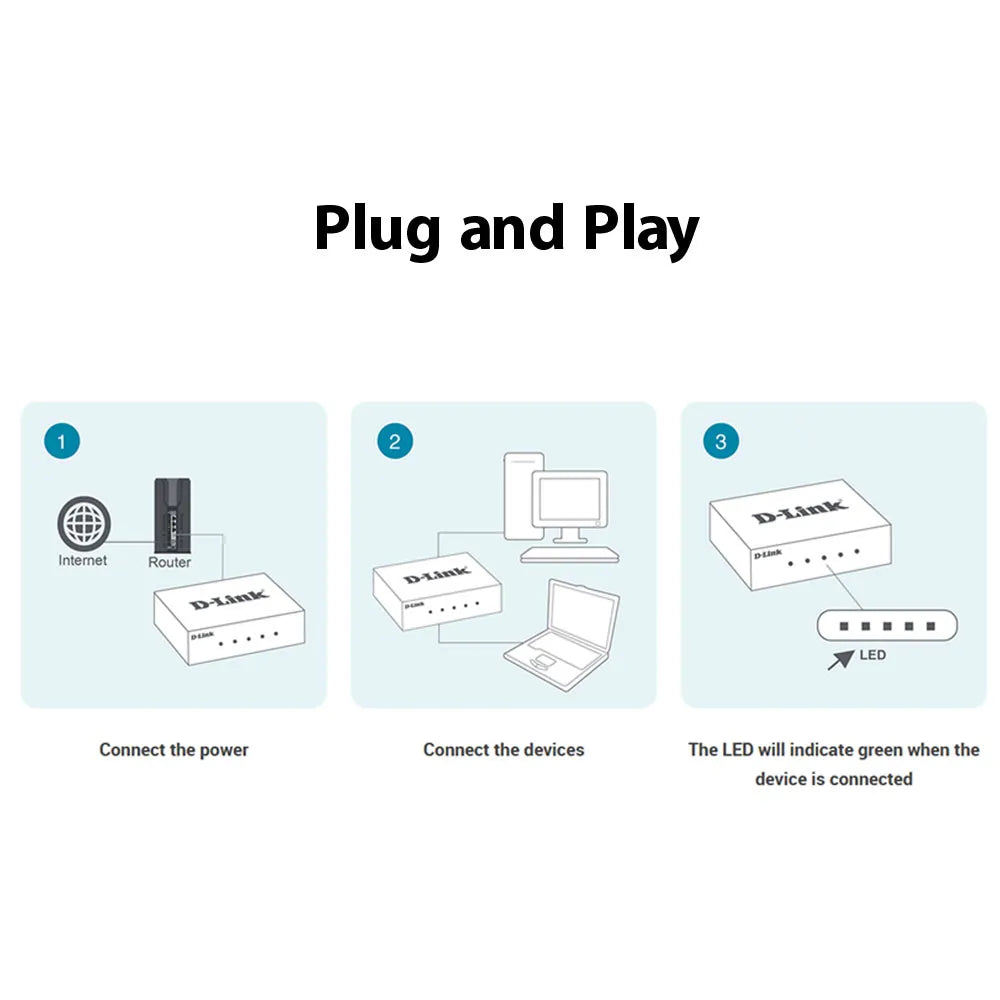

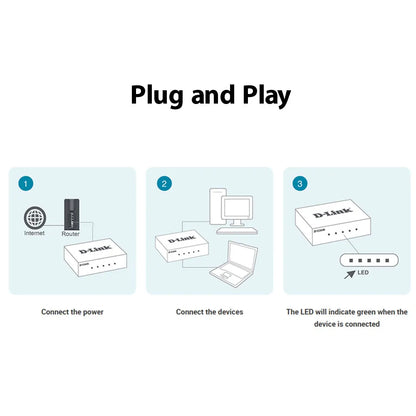

Simplified Installation

All the ports on the DMS-F109TS support automatic MDI/MDIX crossover without any cables.
Each port connects the server, hub, router, or switch easily just by plugging in the cable.
Besides, the DMS-F109TS ports feature LED indicators. With the indicators, you can easily distinguish link status.

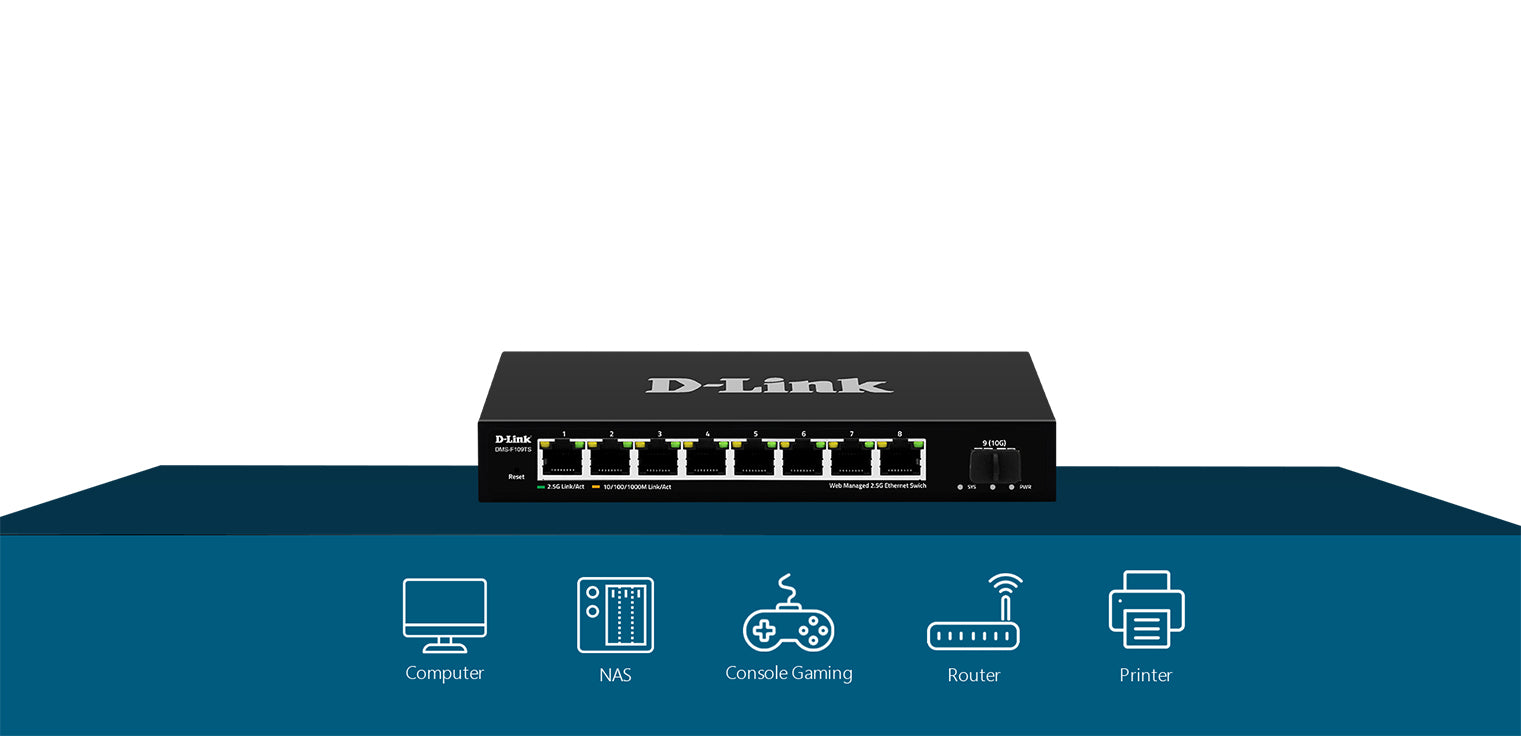

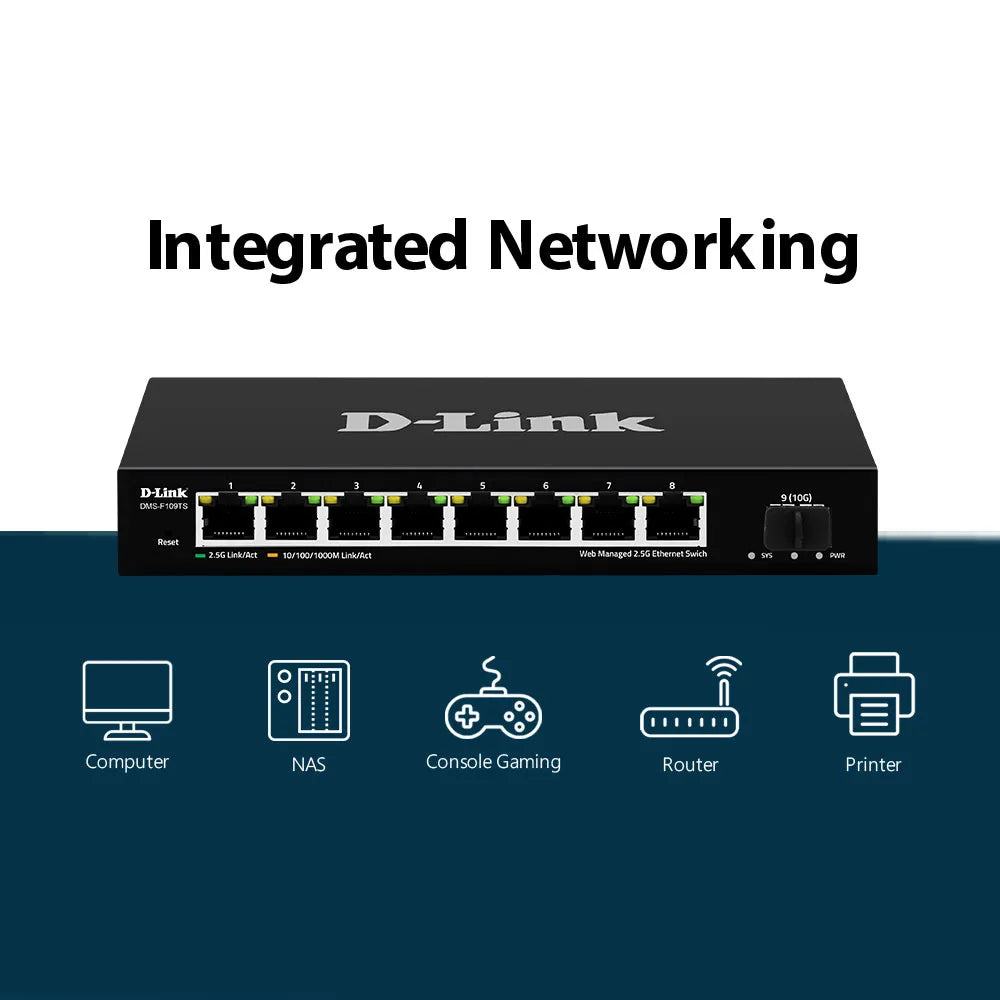

Integrated Networking

Downloads Datasheet

Tech Specifications

Hardware
Interface

• 8*2.5G RJ45 port
• 1*10G RJ45 port

Port Standard

• IEEE802.3 (Ethernet)
• IEEE802.3u (Fast Ethernet)
• IEEE802.3ab (Gigabit Ethernet)
• IEEE 802.3bz (5G Ethernet)
• IEEE 802.3z (Gigabit Ethernet)
• IEEE 802.3ae (10 Gigabit Ethernet)
• IEEE802.3x (Flow Control)

Power Supply

• AC 100-240V 50/60Hz
• DC 12V 1A

Mainboard Power Consumption

• 11.29W

General
Switching Capacity

• 60Gbps

Packet Forwarding Rate

• 44.64Mpps

Packet Buffer

• 8Mbit

MAC Address Table

• 4K

Jumbo Frame

• support

VLAN

• VLAN range 1-4094, maximum active VLAN is 31

Transmission Method

• Store and Forward

Surge Protection

• Surge protection: common mode 6KV, differential mode 2KV ;
• Electrostatic ESD: air 8KV, contact 6KV

Operating Temperature

• 0~40°C

Storage Temperature

• -40 °C to 70 °C

Operation Humidity

• 10%~90%，non condensing

Storage Humidity

• 5%~95%，non condensing

Manager Access

• HTTP

Manager IP

• Static Address

• DHCP Client

User Management

• support

Firmware Management

• Firmware upgrade

Configuration Management

• Upload/Backup Configuration

Save

• support

Restart

• support

Factory Defaults

• support

Physical
Product Dimensions

• 190 x 100 x 28mm

Product Net Weight

• 0.49KG
