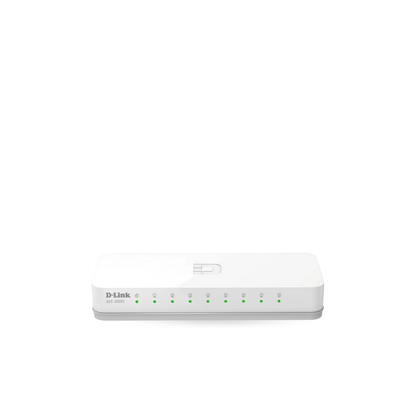

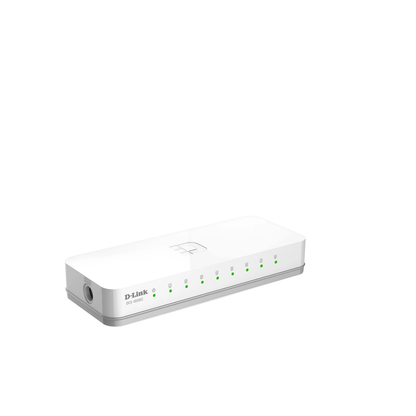

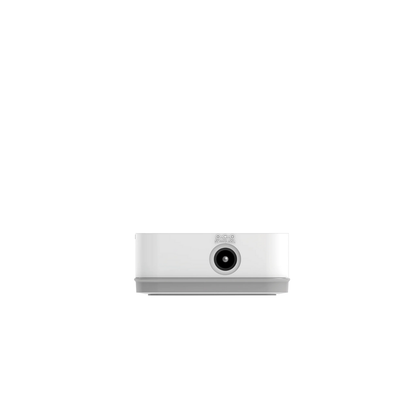

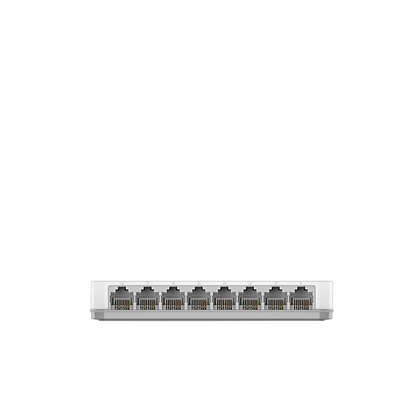

8-Port Fast Ethernet Desktop Unmanaged Switch
8-Port Fast Ethernet Desktop Unmanaged Switch
8-Port Fast Ethernet Desktop Unmanaged Switch
8-Port Fast Ethernet Desktop Unmanaged Switch

8-Port Fast Ethernet Desktop Unmanaged Switch

$29.00
DES-1008C

Fast Networking Made Easy

With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go :

• 8 high-speed Fast Ethernet ports

• Innovative D-Link Green energy saving features

• Compact design for convenient placement

• Fanless design for silent operation

Pickup currently unavailable at D-Link Service Centre

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

Tech Specifications

Hardware
Device Interfaces

• Eight 10/100 Mbps LAN ports

Switching Capacity

•1.6 Gbps switching fabric

MAC Address Table Size

•2,000

Packet Filtering/Forwarding Rates

•Ethernet: 14,880 pps per port
•Fast Ethernet: 148,800 pps per port

RAM Buffer

•96 KB per device

Standards

•IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3x Flow Control
•IEEE 802.3az Energy-Efficient Ethernet (EEE)

General
Advanced Features

•Auto MDI/MDIX crossover for all ports
•Secure store-and-forward switching scheme
•Full/half-duplex for Ethernet/Fast Ethernet speeds
•Supports 2,048 byte jumbo frames
•Back pressure at half-duplex operation
•Wire-speed reception and transmission
•Store and-Forward switching method
•Auto-negotiation for each port
•IEEE compliant IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3az EEE
•IEEE 802.3x flow control

Certifications

•CE Class B
•CE (LVD 2006/95/EC)

Physical
Data Transfer Rates

•Ethernet:
•10 Mbps (half duplex)
•20 Mbps (full duplex)


•Fast Ethernet:
•100 Mbps (half duplex)
•200 Mbps (full duplex

Transmission Method

•Store-and-forward

Dimensions

•131 x 54 x 21 mm (5.16 x 2.13 x 0.83 inches)

Weight

•74.8 grams (2.63 ounces)

Temperature

•Operating: 0 to 40 °C (32 to 104 °F)
•Storage: -40 to 70 °C (-40 to 158 °F)

Humidity

•Operating: 10% to 90% non-condensing
•Storage: 5% to 95% non-condensing

Power

•DC 5 V / 0.55 A
•DC jack: Located on side

LED Indicators

•Per port: Link/Activity/Speed
•Per device: Power

Power Consumption

•Power On (Standby): 0.55 watts
•Maximum: 1.55 watts

Media Interface Exchange

•Auto MDI/MDIX adjustment for all ports
