Interface

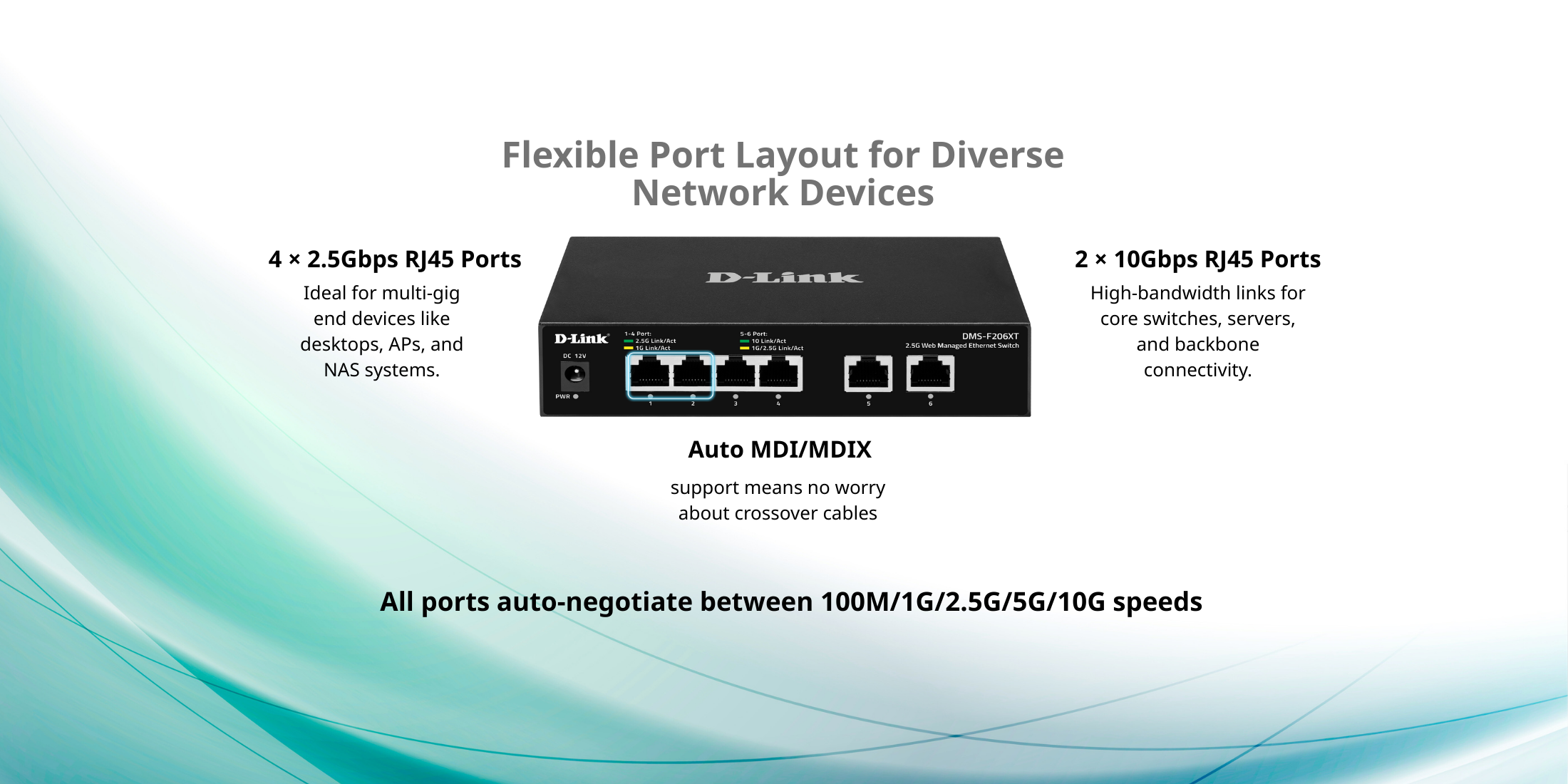

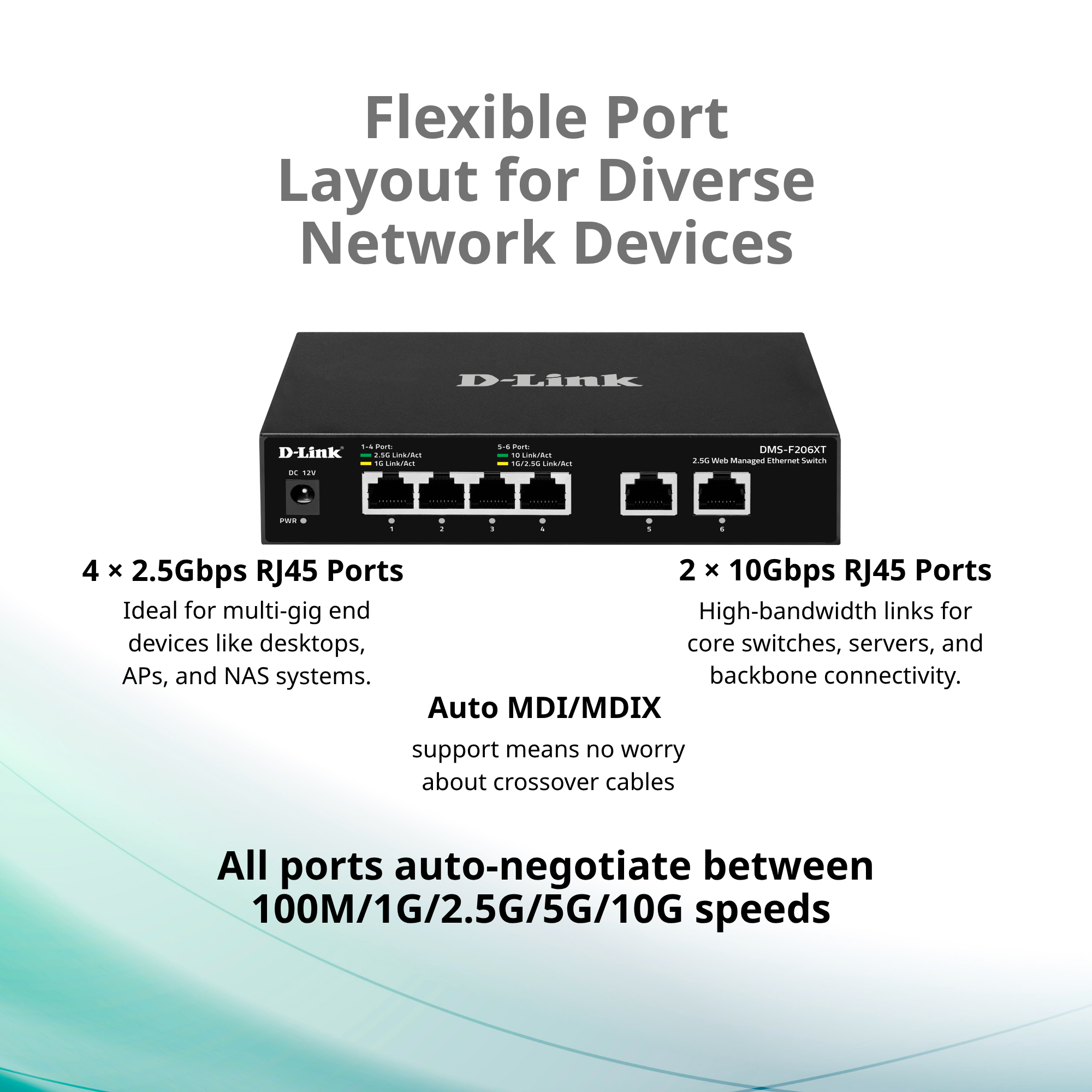

• 4*2.5Gbps RJ45 ports
• 2*10Gbps RJ45 ports

Surge Protection

• Port Surge: Common mode 4KV, Differential mode 1KV(Class B)
  Electrostatic ESD: Air 8KV, Contact 6KV(Class C)

Power Supply

• AC 100-240V 50/60Hz
• DC 12V1A

Fan Quantity

• 0

PWR Green LED

• On: Powered on
• Off: Powered off

Ports 1-4

• Green LED on: 2.5Gbps Link normal
• Yellow LED on: 10/100/1000Mbps Link normal
• Off: Link blocked
• Flashing: Data transmitting

Ports 5-6

• Green LED on: 10Gbps Link normal
• Yellow LED on: 1G/2.5/5Gbps Link normal
• Off: Link blocked
• Flashing: Data transmitting

MAC Address

• Dynamic MAC Address
• Static MAC address

Port Standard

• IEEE802.3 (Ethernet)
• IEEE802.3u (Fast Ethernet)
• IEEE802.3ab (Gigabit Ethernet)
• IEEE802.3z (Gigabit Ethernet Fiber Standard)
• IEEE802.3bz (2.5G Ethernet)
• IEEE 802.3ae (10Gbps Ethernet)
• IEEE802.3x (Flow Control)

Switching Bandwidth

• 60Gbps

Standard Compliance

• IEEE 802.3x flow control and back pressure
• IEEE 802.1D Spanning Tree Protocol IEEE
• 802.1w Rapid Spanning Tree Protocol IEEE
• 802.1Q VLAN tagging
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 2068 HTTP
• RFC 1112 IGMP v1
• RFC 2236 IGMP v2

Packet Forwarding Rate

• 44.64Mpps

Packet Buffer

• 8Mbit

MAC Address Table

• 4K

VLAN

• VLAN range 1-4094, maximum active VLAN is 4K

Jumbo Frame

• 10K

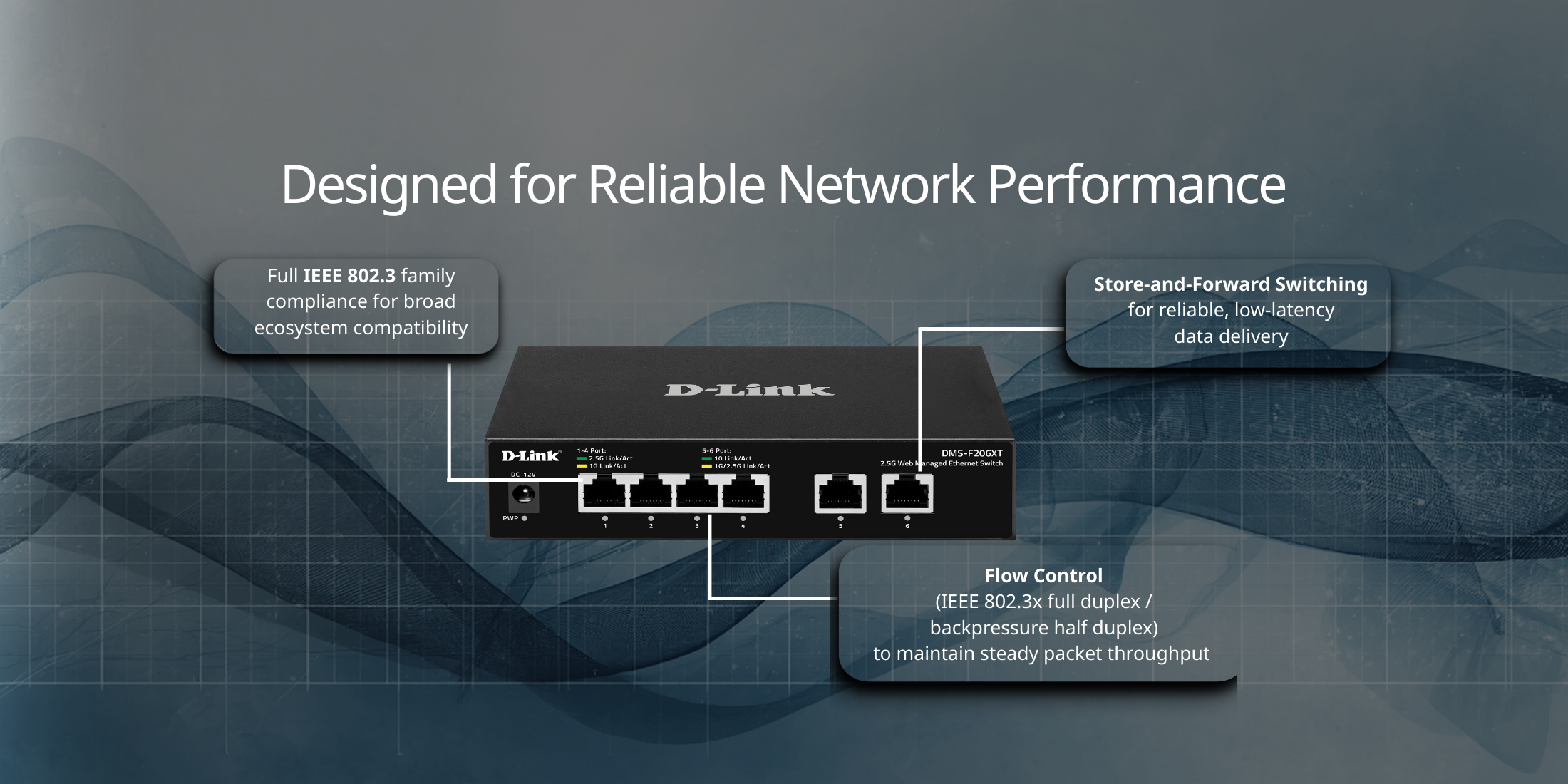

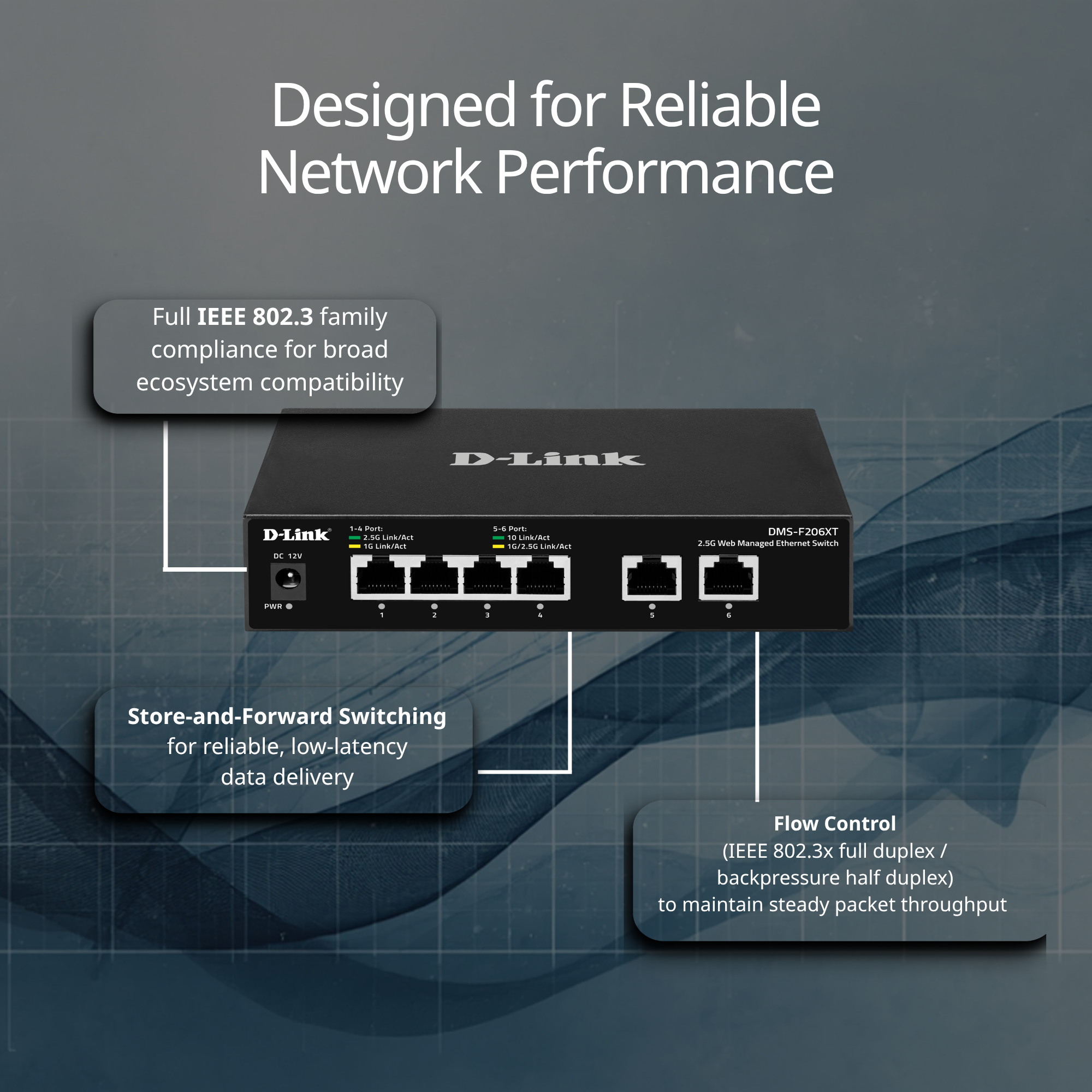

Transmission Method

• Store and Forward

Mainboard Power Consumption

• 9.84W

Structure Information

• Product Dimensions: 160*90*35mm
• Packaging Dimensions: 175*120*73mm
• Product Net Weight: 0.33KG
• Product Gross Weight: 0.47KG

Packing Information

• Carton Dimensions: 520*385*205mm
• Packing Quantity: 20PCS
• Packing Weight: 10.08KG

Installation

• Desktop

L2 Function

Port

• Port Switch configuration
• Port Speed configuration
• Port Duplex configuration
• Port Flow Control configuration
• Jumbo Frame

Link Aggregation

• Max. 4 members per group
• Static Group
• LACP
• Up to 2 groups

Storm Control

• Boardcast suppression
• Multicast
• Unknown Multicast
• Unknown Unicast

Port Mirroring

• Support

Loopback Detection

• Support

Port Isolation

• Support

Port Rate-limit

• Support

VLAN

• Access/Trunk/Hybrid
• Congurable VID from 1 - 4094;Max. 31 static VLAN groups

Spanning Tree Protocol

• STP/RSTP
• Edge Port

Multicast

• IGMP Snooping
• Router Port
• Static IGMP Join
• IGMP V1/V2

QoS

• Traffic classification, Supporting SP and WRR scheduling
• Port Priority
• Support up to 8 queues per port

Services

Access Protocol

• HTTP

Diagnostics

Port Statistics

• Support

Equipment Management

Manager Access

• HTTP

Manager IP

• Static Address
• DHCP Client

User Management

• Support

Firmware Management

• Firmware upgrade

Configuration Management

• Upload/Backup Configuration

Save

• Support

Restart

• Support

Factory

• Defaults Support

Operating Temperature

• 0~40°C

Storage Temperature

• -40~70°C

Operation Humidity

• 10%~90%, non condensing

Storage Humidity

• 5%~95%, non condensing
