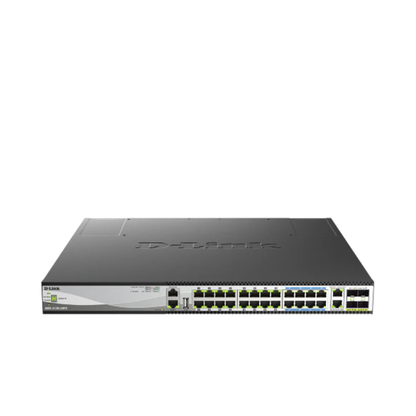

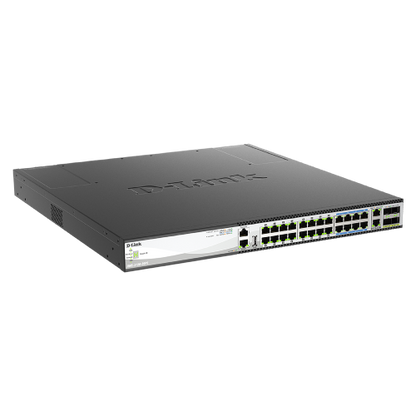

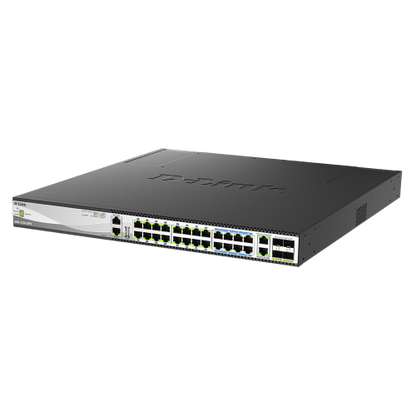

Designed to support the modern SMBs and Metro Ethernet

Tech Specifications

Hardware
PoE Ports
  • 2 x 100M/1/2.5/5/10GBASE-T ports
  • 4 x 10/25G SFP28 ports
  • 8 x 100M/1/2.5/5GBASE-T 60W PoE ports
  • 16 x 100M/1/2.5GBASE-T PoE ports

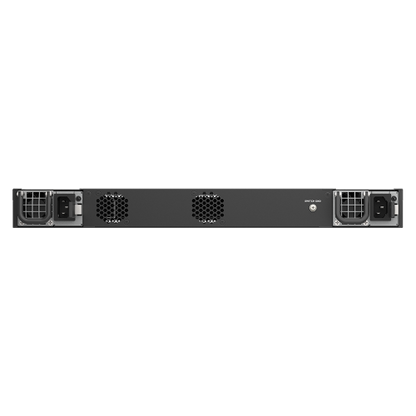

Optional Redundant Power Supply
  • AC (DPS-PWR740AC) hot-swappable internal redundant power supplies
  • DC (DPS-PWR740DC) hot-swappable internal redundant power supplies
Console Port
  • 10/100/1000BASE-T RJ-45 port for out-of-band CLI management
RJ-45 Management Port
  • 10/100/1000BASE-T RJ-45 port for out-of-band IP management
General
Performance
  • 64 Byte Packet Forwarding Rate 298 Mpps
  • Packet Buffer Memory 4 MB
Interfaces
  • 1 x Stacking Cost
  • 4 x Stacking Ports
  • 1 x USB 2.0 Type A port
Switching Capacity
  • 400 Gbps
Standards
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
PoE Power Budget
  • 740 W
  • 960 W (dual power supplies)
