$399.00
SKU
  • Supports 8 *10 Gigabit RJ45 ports
  • Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az,IEEE802.3ae & IEEE802.3bz
  • RJ45 port supports 100M/1G/2.5G/5G/10G adaptive
  • Supports automatic port flipping (Auto MDI/MDIX)
  • Adopting a storage and forwarding exchange mechanism
  • All ports support line speed switching
  • The panel indicator lights will monitor the working status and assist in fault analysis
  • Support QoS data priority
  • Support web management

Pickup currently unavailable at D-Link Service Centre

Pairs well with

In stock item ships within 1-2 business days.

* Warranty Details

Complimentary shipping above $80
Downloads Datasheet

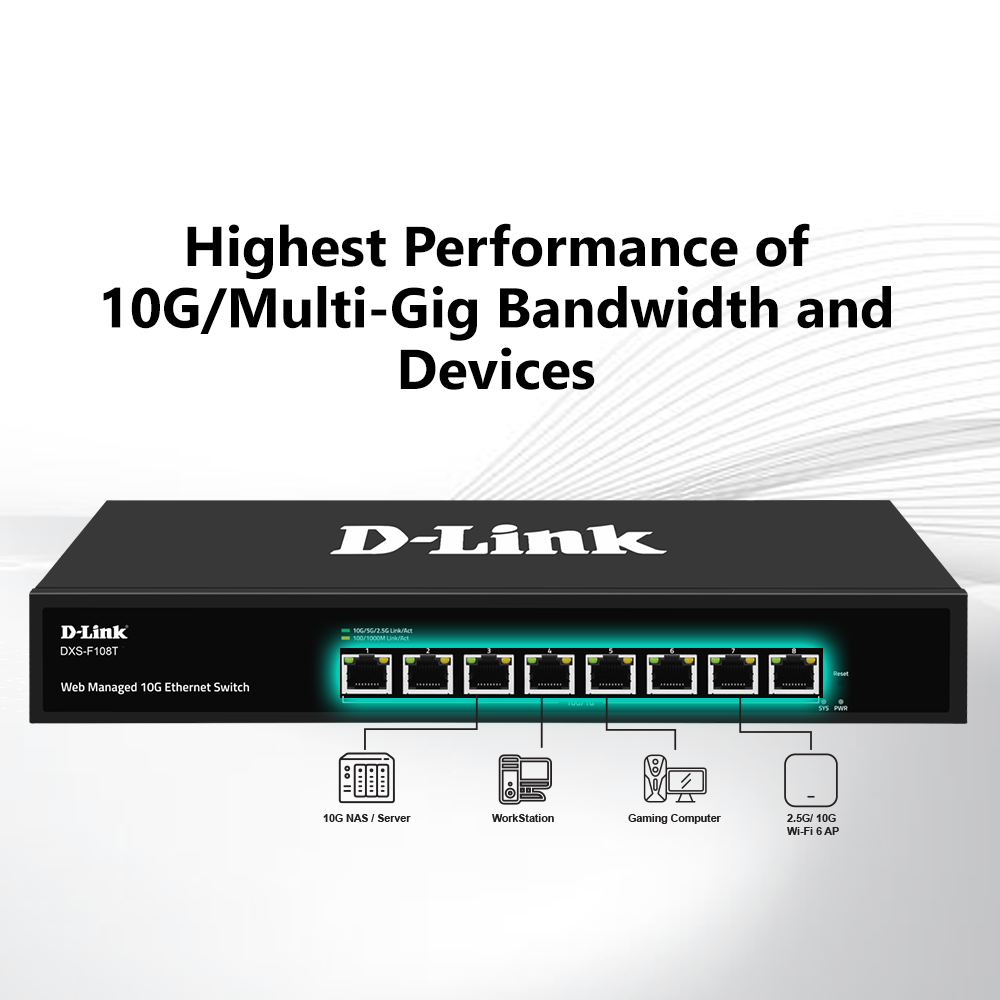

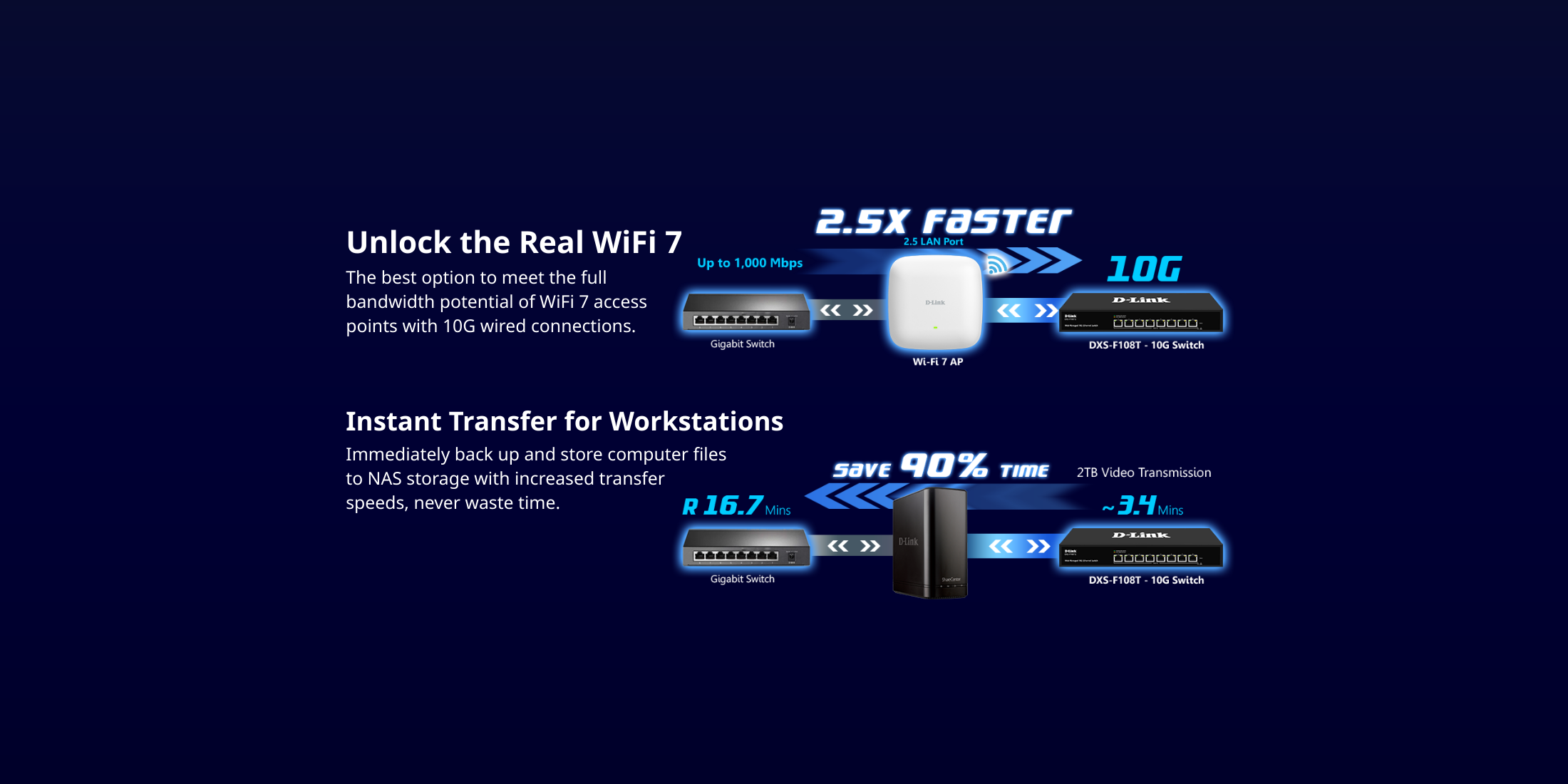

Highest Performance of 10G/Multi-Gig Bandwidth and Devices

Meet the DXS-F108T, the ultimate web-managed 10G switch engineered for businesses that demand lightning-fast data throughput, intelligent control, and rock-solid stability.

With 8 adaptive 10G RJ45 ports and a suite of enterprise-grade features, this switch delivers unmatched performance in modern network environments.

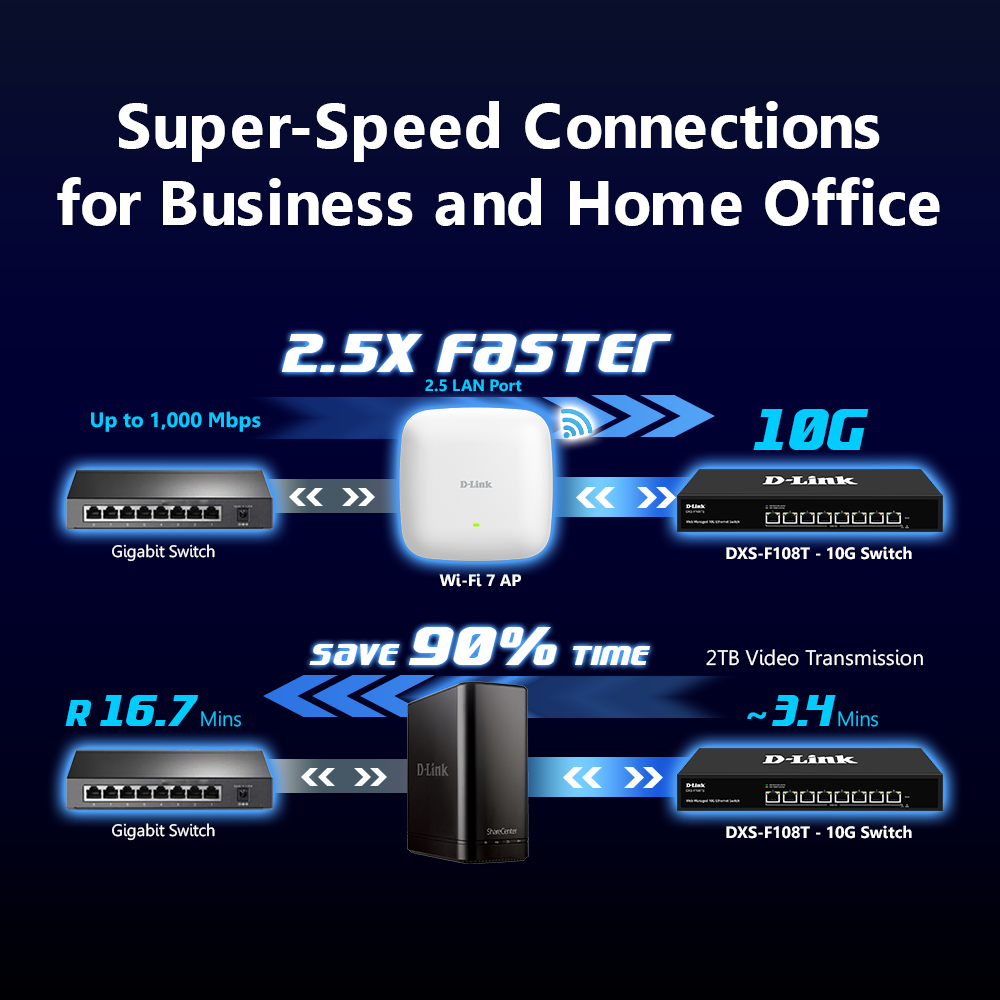

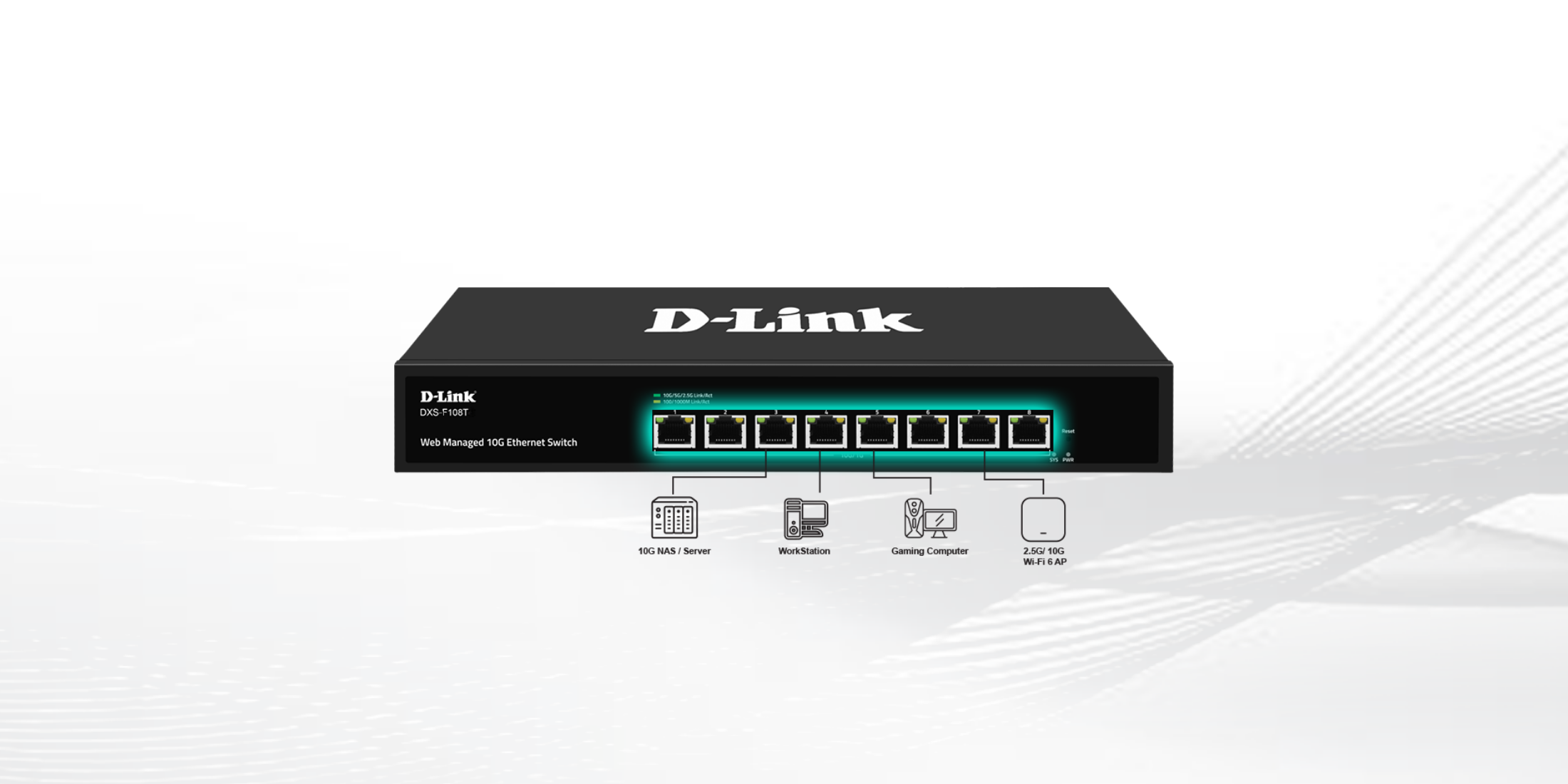

Super-Speed Connections for Business and Home Office

Tech Specifications

Hardware
Interface
  • 8*10G RJ45 port
Port Standard
  • IEEE 802.3: Ethernet Media Access Control (MAC) Protocol
  • IEEE 802.3i:
  • 10BASE-T Ethernet
  • IEEE 802.3u: 100BASE-TX Fast Ethernet
  • IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x:Flow Control
  • IEEE 802.3az (Efficient and Energy saving Ethernet)
  • IEEE 802.3ae (10 Gigabit Ethernet)
  • IEEE802.3 bz (2.5G/5G Ethernet standard)
Switching Capacity
  • 160Gbps
Packet Forwarding Rate
  • 119.04Mpps
Packet Buffer
  • 12Mbit
MAC Address Table
  • 16K
Jumbo Frame
  • support
VLAN
  • VLAN range 1-4094, maximum active VLAN is 4K
Transmission Method
  • Store and Forward
Surge Protection
  • Surge protection: common mode 6KV(Class C)
  • Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Power Supply
  • AC 100-240V 50/60Hz DC
  • 12V 8A
Mainboard Power Consumption
  • 13.8W
Port Security
  • MAC Address Constraints
  • Protect/Restrict/Shutdown
VLAN
  • Access/Trunk/Hybrid
  • VLAN Tunnel （Q-in-Q Tunnel）
  • VLAN range 1-4094, maximum active VLAN is 4K
MAC Address
  • Filtering MAC Address
  • Static MAC address
Multicast
  • IGMP Snooping
  • Router Port
  • Static IGMP Join
  • IGMP V1/V2/V3
QoS
  • Traffic classification, supporting SP and WRR scheduling
  • Port Priority
  • 802.1P Priority
  • IP DSCP Priority
  • Priority Remarking
  • Supports up to 8 queues per port
General
Structure Information
  • Product Dimensions:320*207*45mm Packaging
  • Dimensions:370*290*85mm Product Net
  • Weight: 1.82KG
Packing Information
  • Carton Dimensions :445*310*390mm
  • Packing Quantity: 5PCS
  • Packing Weight:12.8KG
Packing List
  • Switch 1pcs, power cord 1pcs, instruction manual 1pcs
Fan Quantity
  • 1
Installation
  • desktop
RESET
  • Long press for 6 seconds to restore factory settings
Security
  • DHCP Snooping
Standard Compliance
  • IEEE 802.3x flow control and back pressure
  • IEEE 802.3ad port trunk with LACP
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree Protocol
  • IEEE 802.1p Class of Service
  • IEEE 802.1Q VLAN tagging
  • RFC 768 UDP
  • RFC 793 TFTP
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 2068 HTTP
  • RFC 1112 IGMP v1
  • RFC 2236 IGMP v2
  • RFC 3376 IGMP v3
Physical
Operating Temperature
  • 0~40°C
Storage Temperature
  • -40°C to 70°C
Operation Humidity
  • 10%~90%，non condensing
Storage Humidity
  • 5%~95%，non condensing
PWR
  • On: Powered on
  • Off: Powered off
2.5G/5G/10G（Green led）
  • On: link normal
  • Off: Link blocked
  • Flashing: Data transmitting
SYS
  • On: The system is normal
  • Flashing: System startup in progress
100/1000M（Yellow led）
  • On: link normal
  • Off: Link blocked
  • Flashing: Data transmitting
Port
  • Port Switch configuration
  • Port Speed configuration
  • Port Duplex configuration
  • Port Flow Control configuration
  • EEE
  • Jumbo Frame
