High power output to ensure your network’s wireless signal reaches distant locations.
Waterproof Design
IPx5-certified housing for waterproof protection.
Multiple Operational Modes
Use as an access point (AP), Wireless Distribution System (SDS), WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater.
4kV Surge and 15kV ESD Protection
Protection against voltage spikes and breakdowns.
Flexible Mounting Options
Includes wall or pole mounting kits and PoE injector.
Supports up to 8 SSIDs
Logically divide the AP into several virtual access points all within a single hardware platform.
Security Features
Wireless encryption, along with support for multiple SSIDs and VLANs.

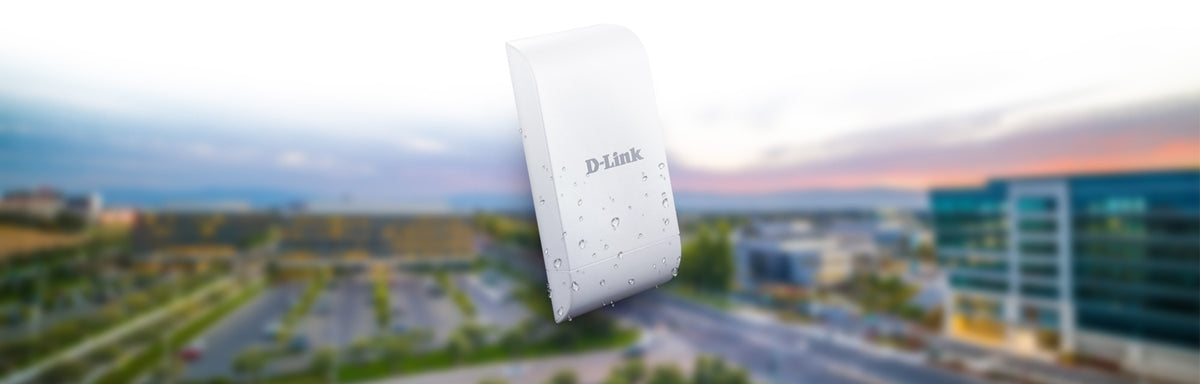

Build the Bridge to a Better Network
Built for outdoor use, its waterproof housing protects it from the elements, and its directional antenna excels in connecting separate networks that cannot be joined using cabling.

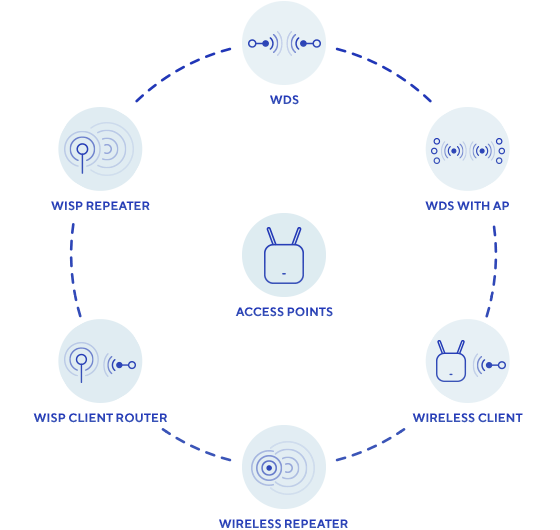

Fits into Your Network
The DAP-3315 features multiple operation modes, allowing it to adapt to any situation:
InWireless Distribution System(WDS) mode, it can expand current wireless coverage without the need for a wired backbone link. Repeatermode will extend current wireless coverage eliminating dead spots and weak signals. WISP mode functionality includes the ability to function as a client or repeater
As awireless client, it can connect to an existing AP and expand the network physically with the two built-in Ethernet ports.
Using it as a standardwireless access point(AP) a wide range of wireless devices can connect to the DAP-3315.
Point-to-point or Multi-point
Expand your current wireless network with a single wireless band with the furthest reach. Supports passive PoE to allow for easy and adaptable installation. Built-in 12 dBi sector antenna has a high power output to ensure wireless signal reaches farther, whether you want to connect additional wireless devices or bring connectivity over the air to networks separated by short distances.

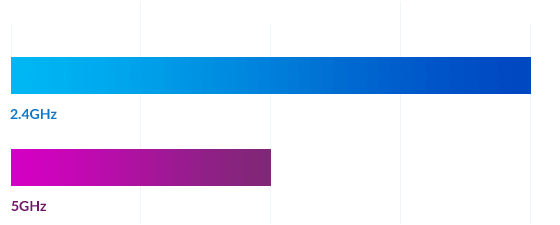

Directional Antenna
The built-in 12 dBi High Gain directional antenna utilises the far-reaching 2.4Ghz wireless band to ensure your wireless signal extends to distant locations.
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.

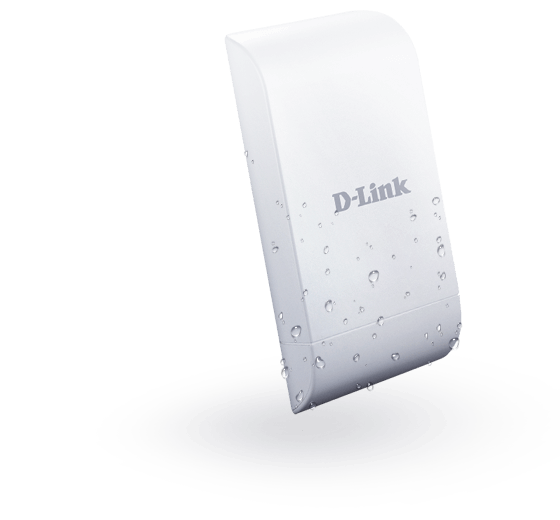

With its IPX5 waterproof housing that maintains your uptime during rainy weather1, and high power radio antenna, the DAP-3315 is ideal for providing wireless connectivity between two locations using 2.4Ghz wireless N connectivity. It even operates between -20 to 60 °C (-4 to 140 °F) temperature ranges.
Power Where You Need It Most
Its proprietary PoE (Power over Ethernet) design and included power injector makes it convenient to deploy - especially in places where a power supply is unreliable or power cables are not available.

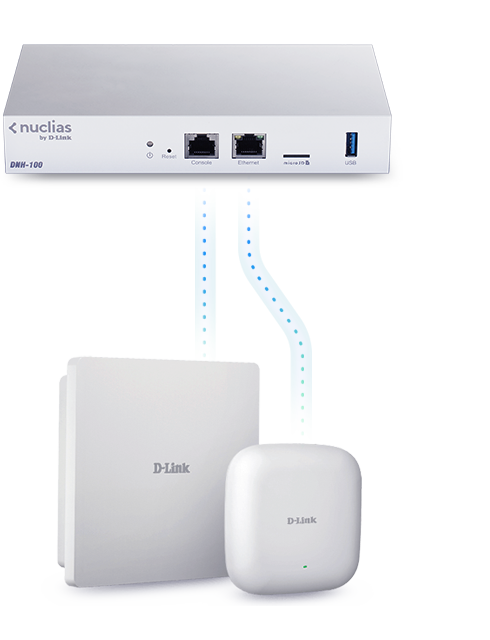

Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
More Controls Over Network Resources
Up to 8 SSIDs
Divide the access point into virtual access points, all within a single hardware platform. Deploy one single AP to support more than one application, like public Internet access, to keep costs down.
VLAN Tagging
It supports 802.1Q VLAN Tagging, which enables operations with multiple SSIDs to segment traffic to enhance network performance and security.
WLAN Partitioning
Ideal for wireless hotspot deployments. With station-to-station partitioning enabled, security is improved, since wireless users cannot peek at each other, the possibility for data theft is reduced.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specifications
Hardware
Power-over-Ethernet
Yes
Wired interface
2 x Fast Ethernet LAN
Type of housing
Plastic
Wireless
Wireless speed
300 Mbps 2.4 GHz
Antenna type
Embedded sector antenna
Antenna gain
12 dBi for 2.4 GHz
IP rating
IPX5
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Wireless extender
Maximum number of SSIDs
8
Auto channel selection
WMM-PS/802.11e (U-APSD)
Wi-Fi scheduler
AP traffic load balance
L2 roaming
WPA/WPA2-Personal/Enterprise
TKIP/AES encryption
WPA_WPA2_PSK over WDS
WLAN partition
SSID broadcast disable
Station isolation
MAC address filtering
802.1X authentication
General
Type
Software Managed AP
Infrastructure AP
Frequency band mode
Single-band
DHCP server
802.1D STP
IGMP snooping
ARP spoofing
NTP
WEB
Syslog
Advanced features
802.11k/r Roaming
Management platform
Nuclias Connect
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice
