• Layer 2 management and security with Layer 3 capabilities • Industry Standard CLI, Console Port and Web UI • 10G SFP+ Physical Stacking • Static Routing and MSTP • PoE options up to 740W power budget2

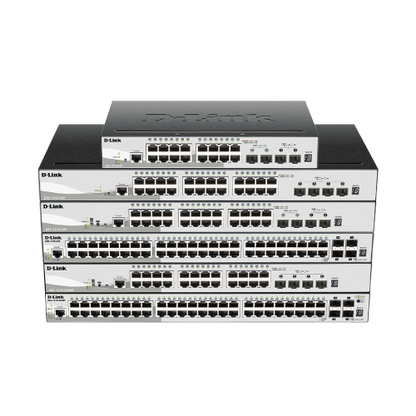

Create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1

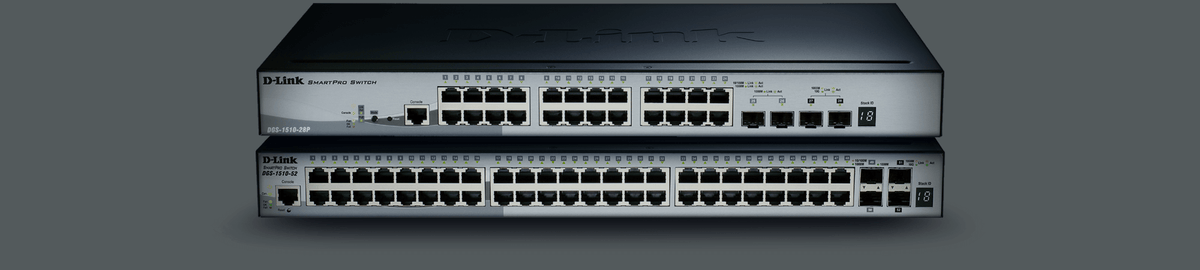

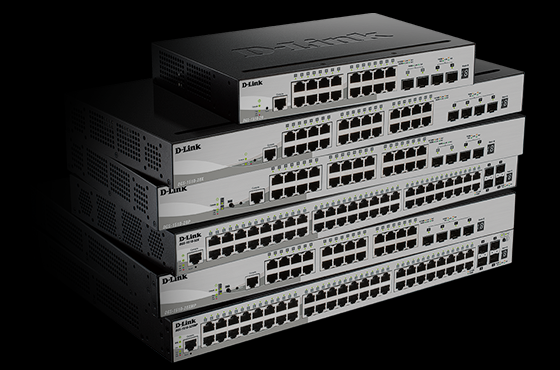

Industry Standard CLI with 10G SFP+ Stacking

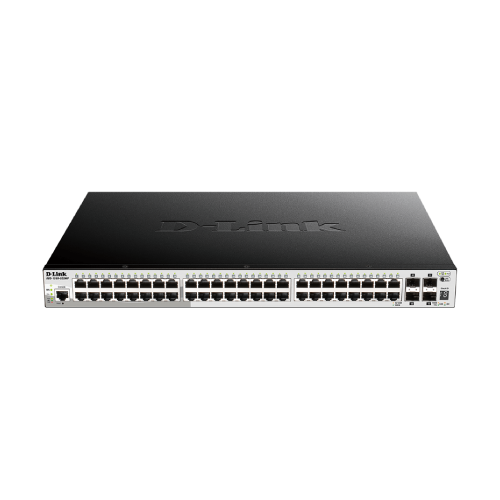

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for small and medium enterprise environments.
Fully-Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, Multiple Spanning Tree Protocol (MSTP), Link Aggregation (LACP), static routing, multiple firmware images, and multiple configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.

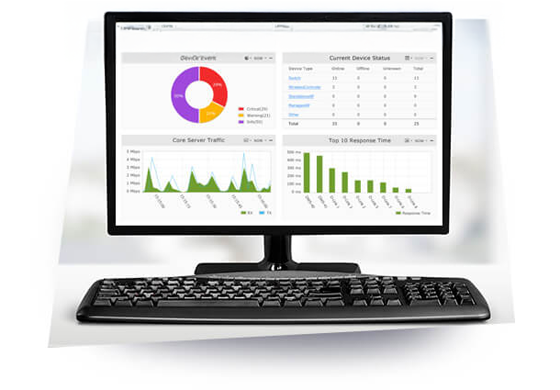

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
PoE and PoE+, with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.
Smart Energy-Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series feature a smart fan that adjusts fan-speed. With advanced silicon technology, the DGS-1510 saves up to 73% of energy compared to a normal switch.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specifications
Hardware
Main type of ports
1000BASE-T Gigabit Ethernet
Number of ports
16 to 30 ports
48 to 54 ports
Type of uplink ports
SFP
10GbE SFP+
Number of PoE ports
24
Form factor
Desktop
Rackmountable
Housing
Metal
Physical stacking
Up to 6 devices
Wireless
MAC address
16K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Link aggregation
802.3ad
VLAN group (max static)
4K
VLAN type
GVRP
Port-based
Advanced VLAN
Asymmetric VLAN
Auto Surveillance VLAN
Auto Voice VLAN
IPv6 Ready
Static route for IPv4/IPv6
IPv4 - 64
IPv6 - 32
Number of QoS queues per port
8
CoS based on contents
Bandwidth control
64 Kbps minimum granularity
ACL based on packet contents
Time-based ACL
Encryption protocol supported
SSH
SSL (v1/v2/v3)
IP-MAC-port binding (IMPB) / Smart Binding
ARP spoofing
802.1X access control
SNMP (v1/v2c/v3)
RMON v1
LLDP
LLDP-MED
General
Layer
Layer 2
Layer 2+
Switching capacity
76 Gbps
92 Gbps
140 Gbps
PoE options
802.3af
802.3at
PoE power budget
See datasheet
D-Link Green
802.3az Energy-Efficient Ethernet support
Virtual stacking (up to 32 devices)
Jumbo frame
Cable diagnostics
Type
Smart managed
Stacking
Physical
Virtual
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
