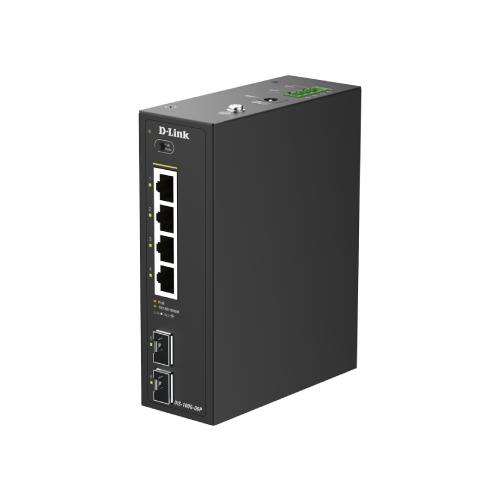

• 4 x Gigabit PoE ports for fast data transmission • 2 x 1G SFP ports for easy network expansion • IEEE 802.3af/at with 120W PoE power budget • Dual power inputs provide power redundancy • Wide voltage compatible with various power sources • -40°C to 75°C operation for harsh environments • 6kV surge protection on Gigabit Ethernet ports • DIN-rail and plug-and-play simplified installation • Fanless and IP40-rated design enhance reliability • Support 802.3az Energy Efficient Ethernet (EEE)
Offer high speed, low latency and long-distance transmission

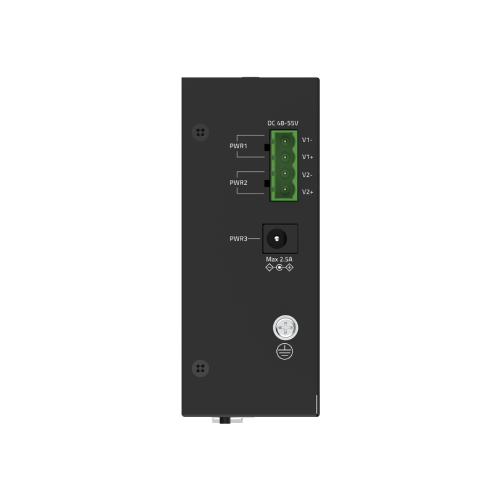

Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
6kV Surge Protection
6kV Surge Protection keeps all Ethernet ports unharmed from the surge
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
Wide Voltage
Redundancy Power Supply
Connect Far, Transmit Fast
The DIS-100G-06P features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.
High Power with PoE+
The DIS-100G-06P features four built-in PoE ports that comply with IEEE 802.3af/at standards, delivering both data and power over a single Ethernet cable. With a total power budget of up to 120W, each port can supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.

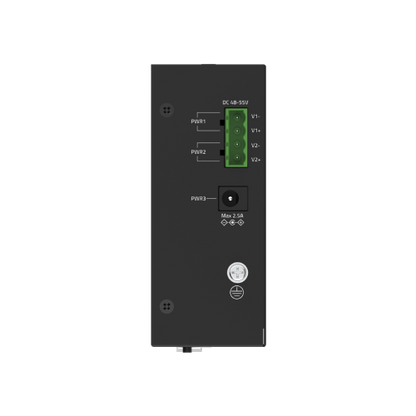

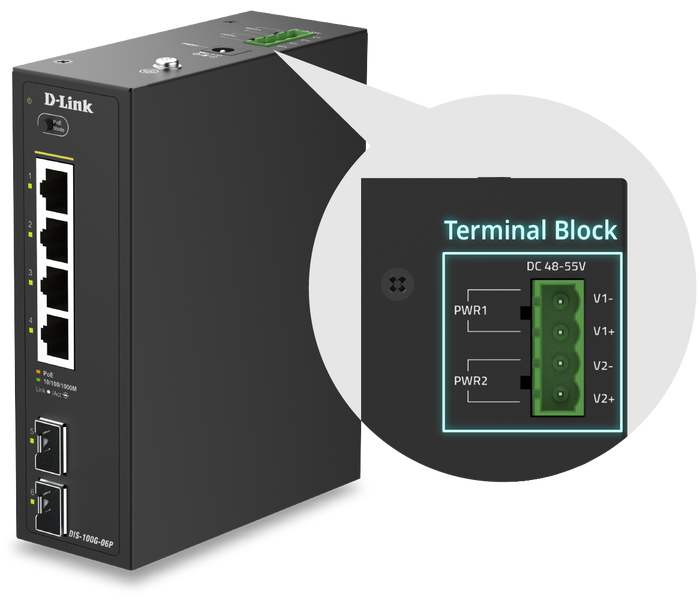

Uninterrupted Power Redundancy
The DIS-100G-06P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 - 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Built Tough for Demanding Conditions
The DIS-100G-06P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

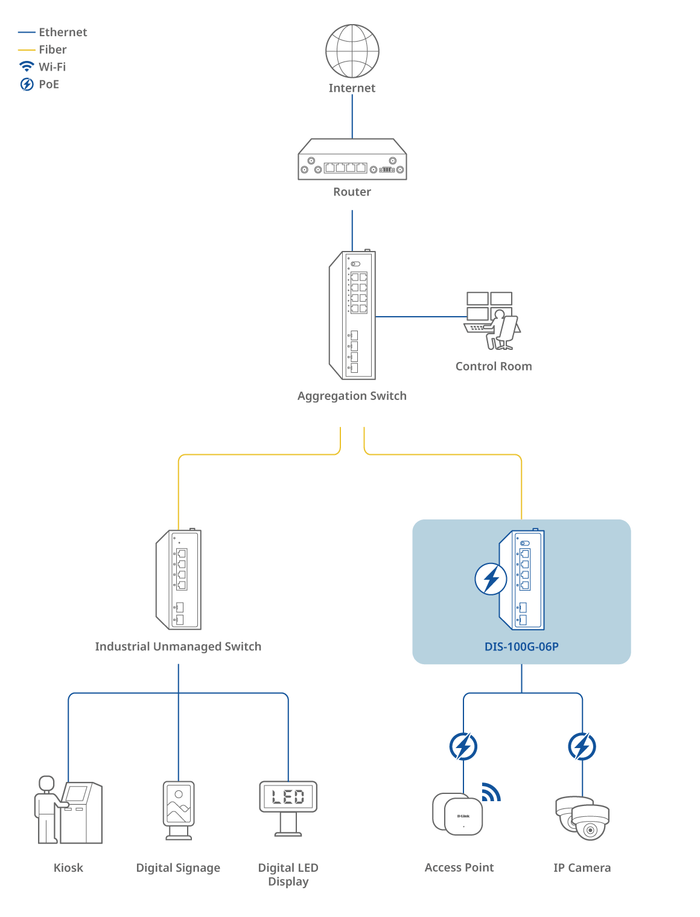

Connection Diagram
The DIS-100G-06P is an industrial unmanaged switch equipped with four 1G PoE ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it's well-suited for edge deployments in applications like HD surveillance, wireless access points and more.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specifications
Hardware
Type of Downlink Ports
1G SFP
Type of Uplink Ports
1G SFP
Number of Gigabit ports
4
Number of SFP ports
2
PoE Capable Ports
Port 1-4, up to 30 W
PoE Ports
802.3af, 802.3at
Number of PoE Ports
4
Wireless
MAC Address
Up to 8K
General
Switching Capacity
12 Gbps
PoE Power Budget
120W
Fanless
802.3az EEE
Power Supply Type
DC:48~55V Dual input
Installation
DIN-Rail
Surge Protection
6kV
Ingress Protection
IP40
Jumbo Frame
9K
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
Physical
Operating Temperature
-40°-75°C
Dimensions
138 x 108 x 44 mm
