• 4 x Gigabit ports for fast data transmission • 2 x 1G SFP ports for easy network expansion • Dual power inputs provide power redundancy • Wide voltage compatible with various power sources • -40°C to 75°C operation for harsh environments • 6kV surge protection on Gigabit Ethernet ports • DIN-rail offers efficient and flexible installation • Fanless and IP40-rated design enhance reliability • Plug-and-play with no configuration required • Support 802.3az Energy Efficient Ethernet (EEE)
Offer high speed, low latency and long-distance transmission
Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
6kV Surge Protection
6kV Surge Protection keeps all Ethernet ports unharmed from the surge
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
Wide Voltage
Redundancy Power Supply
Connect Far, Transmit Fast
The DIS-100G-06 features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

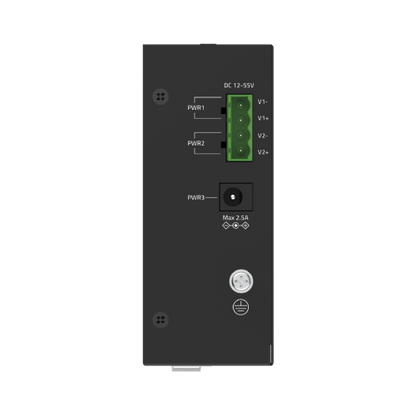

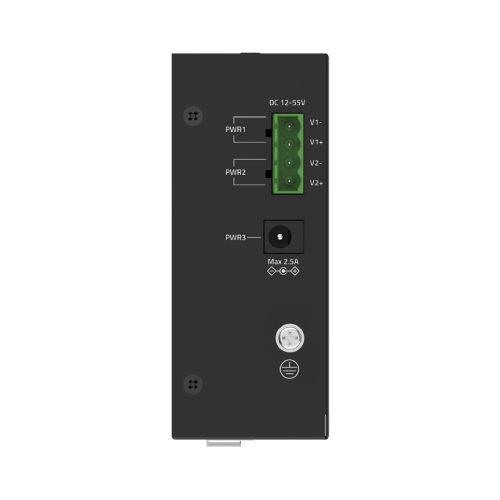

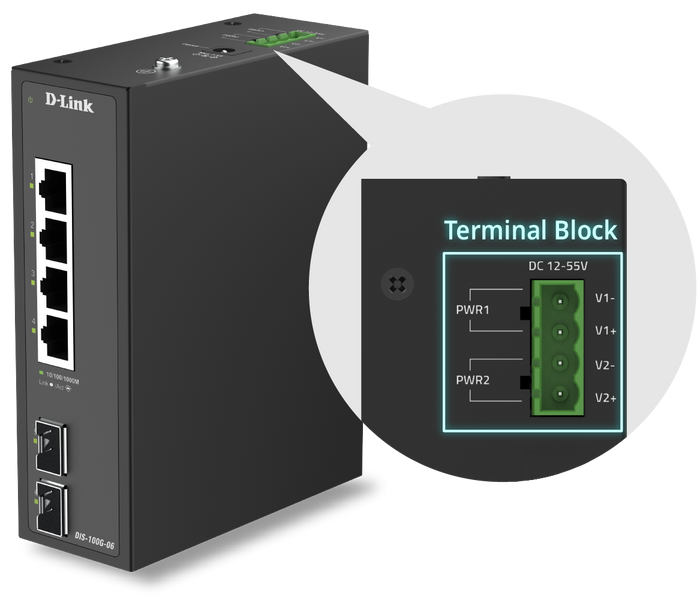

Uninterrupted Power Redundancy
The DIS-100G-06 is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 12 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Built Tough for Demanding Conditions
The DIS-100G-06 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

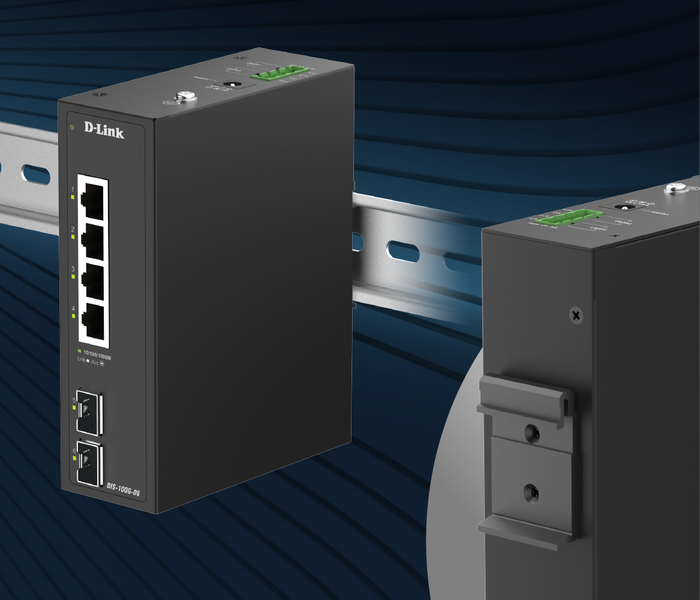

Efficient and Flexible Deployment
The DIS-100G-06 offers true plug-and-play simplicity, just connect the cables and power it up, with no configuration required. It’s an effortless way to quickly and efficiently set up a network, making it ideal for a wide range of field applications. Its compact size and supports DIN-rail mounting, saving space and allowing for easy, organized installation within industrial control cabinets, fit seamlessly into any industrial equipment infrastructure.

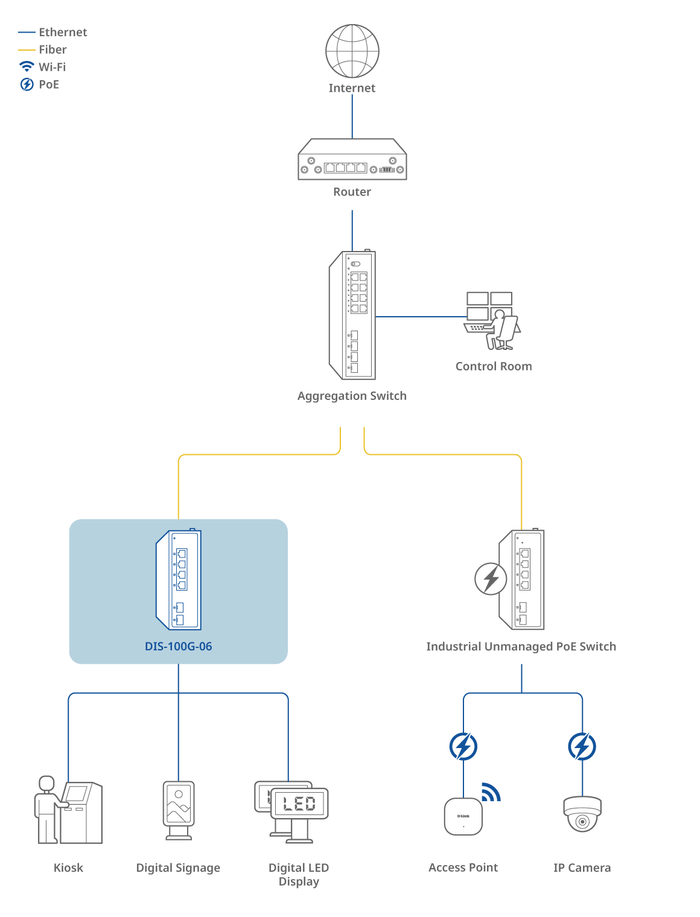

Connection Diagram
The DIS-100G-06 is an industrial unmanaged switch equipped with four 1G ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it ensures real-time data transfer and seamless connectivity for applications such as Kiosk, digital signage, LED displays, and more.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specifications
Hardware
Type of Downlink Ports
1G SFP
Type of Uplink Ports
1G SFP
Number of Gigabit ports
4
Number of SFP ports
2
Wireless
MAC Address
Up to 8K
General
Switching Capacity
12 Gbps
Fanless
802.3az EEE
Power Supply Type
DC:12~55V Dual input
Installation
DIN-Rail
Surge Protection
6kV
Ingress Protection
IP40
Jumbo Frame
9K
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.
Physical
Operating Temperature
-40°-75°C
Dimensions
138 x 108 x 44 mm
