Easily manage your network with Nuclias Connect

Easily manage your network with Nuclias Connect

Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.

Next-gen Wi-Fi 6

Next-gen Wi-Fi 6

Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards

Intelligent, secure performance

Intelligent, secure performance

Superior security with WPA3™ wireless encryption, and high throughput with dual-band, 2x2 MU-MIMO technology, band steering & airtime fairness that intelligently manages users.

Flexible installation with PoE

Flexible installation with PoE

Supports Power over Ethernet (802.3at) for simpler installation with less cable clutter, offers wall-mount or ceiling design options to suit diverse installation needs.

Flexible AP Solutions

Flexible AP Solutions

Works as a standalone AP or as part of a centralised, scalable multi-device deployment in line with business demand.

Minimise the hassle of admin tasks

Minimise the hassle of admin tasks

Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly.

Branded Captive Portal

Branded Captive Portal

A branded Captive Portal with industry-standard authentication for enhanced access management.

User Authentication and Roaming Capability

User Authentication and Roaming Capability

Centralized management through Nuclias Connect enables seamless connectivity for guests who connect to D-Link EAP within the same organization, eliminating the need for users to re-authenticate after the initial login.

Maximize your performance with Wi-Fi 6 and easy-to-use management platform

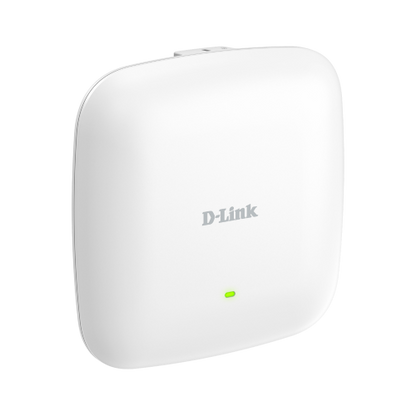

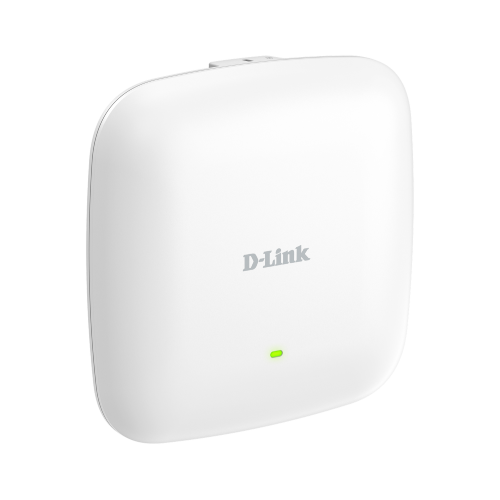

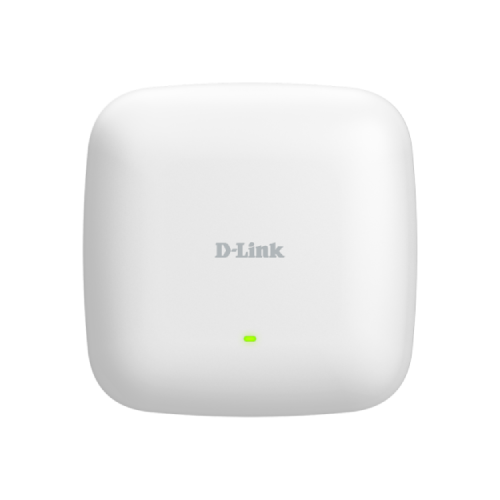

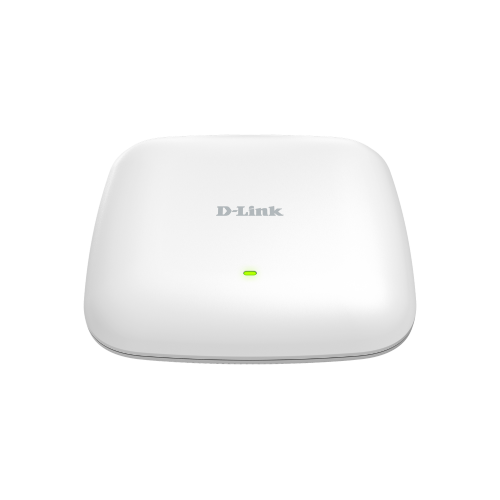

The Wi-Fi 6-enabled DAP-X3060 delivers incredible speeds, significantly increased capacity, and interference-free coverage for business environments of all sizes.

Maximize your performance with Wi-Fi 6 and easy-to-use management platform

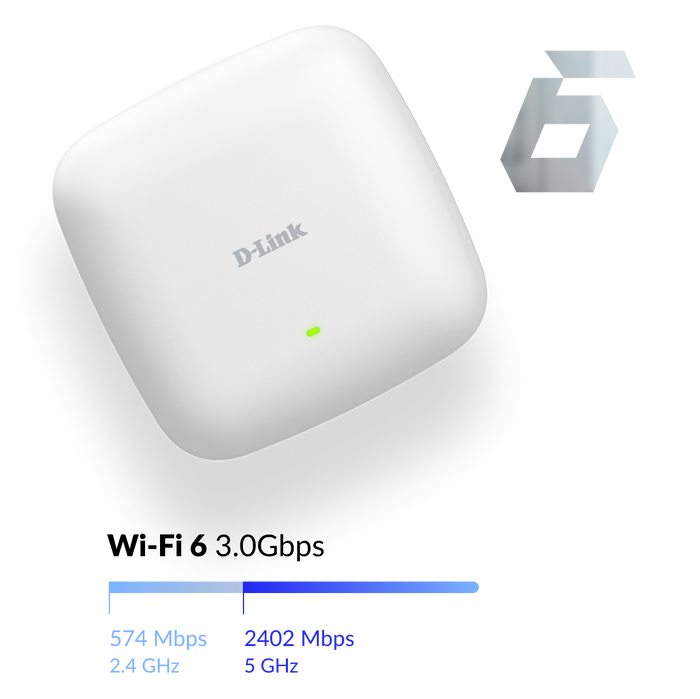

Next‑gen Wi‑Fi 6 performance that turbo boosts your business

Next‑gen Wi‑Fi 6 performance that turbo boosts your business

With combined Wi-Fi 6 802.11ax speeds of up to 3,000 Mbps, the DAP-X3060 provides lightning-fast connectivity, enabling large data transfer and superior quality video streaming, even in highly congested environments.

As the next-generation of connectivity, Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards.

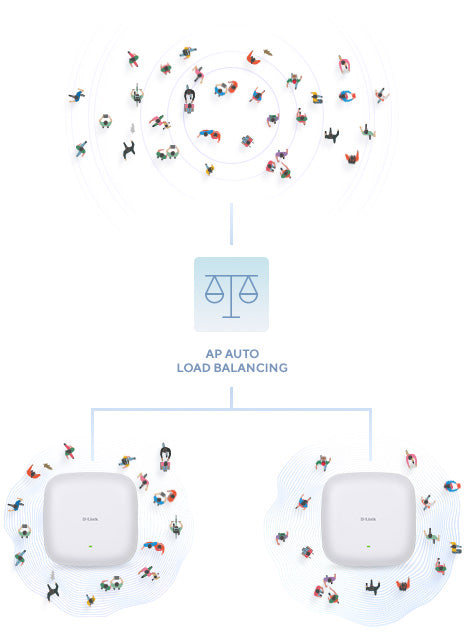

Optimised Wi‑Fi for a superior client experience.

Optimised Wi‑Fi for a superior client experience.

The DAP-X3060 supports Band steering, 2x2 MU-MIMO and beamforming - all designed to work together to alleviate congestion.

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.

Multiple Operation Modes

Multiple Operation Modes

The DAP-X3060 can be configured to fit the needs of your network and optimise performance.

- Access point
- Wireless distribution system
(WDS) with access point
- WDS/bridge (no AP broadcasting)

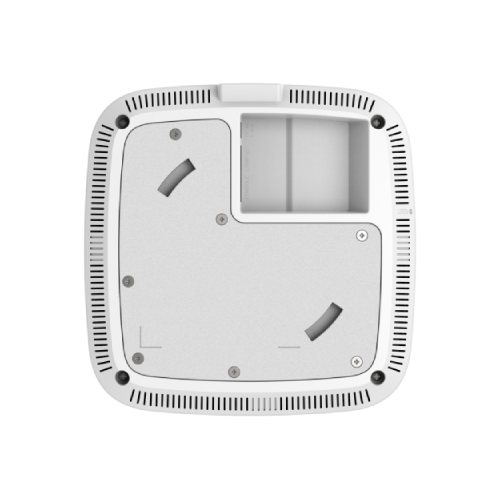

Simple and clean installation, anywhere.

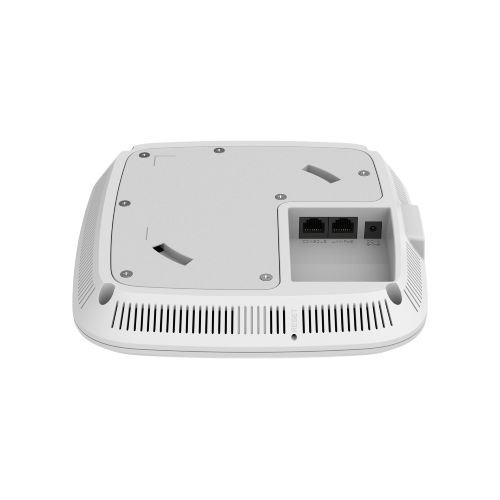

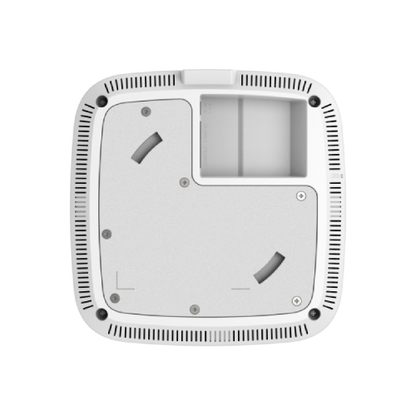

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X3060’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

Designed as a comprehensive and easy‑to‑use solution for every type of business

Designed as a comprehensive and easy‑to‑use solution for every type of business

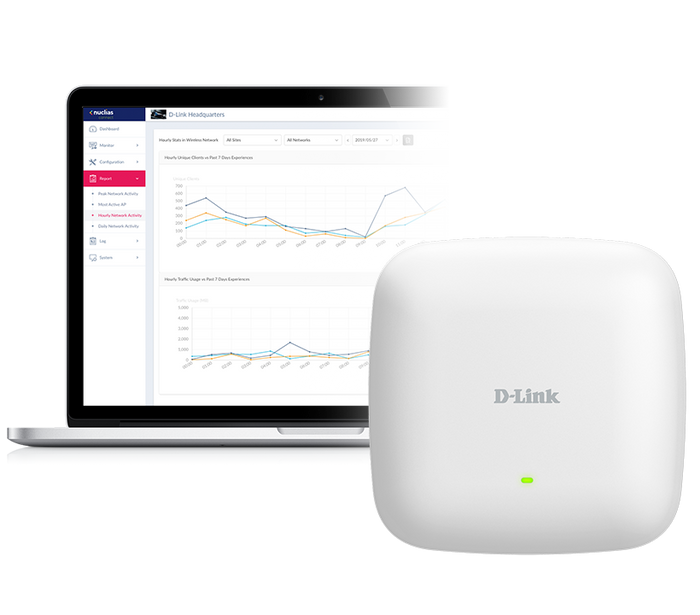

Manage your business network with powerful controls

Manage your business network with powerful controls

The DAP-X3060 works with our Nuclias Connect software-based management platform, allowing you to manage and control your business network from anywhere with an internet connection. This enables easy access, automation, and network scalability.

With Nuclias Connect's traffic analytics and status reports, insights derived from this data can be used to create business value. Traffic can be viewed across the entire network and down to the level of a single Access Point.

Comprehensive on‑site network management

Comprehensive on‑site network management

Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.

Scale your Wi‑Fi alongside your business, from anywhere

Scale your Wi‑Fi alongside your business, from anywhere

Nuclias Connect is a comprehensive network management platform designed to administer D-Link's access points and switches. This integrated solution, tailored for on-premises deployment, encapsulates a rich spectrum of functionalities aimed at enhancing network oversight and control.

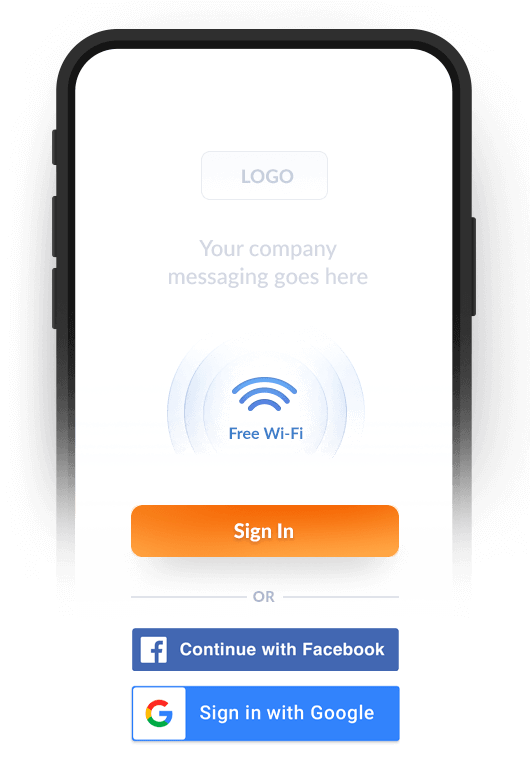

Get your guests online through a captive portal

Get your guests online through a captive portal

Not only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.

Made for your business

SMB & SME

SMB & SME

Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.

Retail Chains

Retail Chains

Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.

Universities

Universities

Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.

Hotels

Hotels

Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.

Tech Specifications

Hardware
Antenna gain
  • 3 dBi for 2.4GHz
  • 3 dBi for 5GHz
Antenna type
  • Embedded omni-directional antennas
Indoor/outdoor
  • Indoor
Type of housing
  • Plastic
Console Port
Wireless
Wireless
Wireless Standard
  • 802.11ax Wi-Fi 6
Maximum number of SSIDs
  • 16
Wireless Speed
  • 574 Mbps 2.4GHz
  • 2402 Mbps 5GHz
Wired interface
  • 1 x 2.5 Gigabit Ethernet LAN
Wireless modes
  • Access Point(AP)
  • WDS bridge
  • WDS with AP
General
Advanced Features
  • 802.11k/r Roaming
  • MU-MIMO
Power-over-Ethernet
Type
  • Software Managed AP
802.1X authentication
AP traffic load balance
Auto channel selection
CLI
DHCP server
L2 roaming
IGMP Snooping
IPv6
MAC address filtering
SNMP
SSH
SSID broadcast disable
Station isolation
Syslog
Telnet
TKIP/AES encryption
WEB
WEP 64/128 bit
Wi-Fi scheduler
WLAN partition
WMM-PS/802.11e(U-APSD)
WPA/WPA2-Personal/Enterprise
WPA_WPA2_PSK over WDS
WPA3-Personal/Enterprise
Frequency band mode
  • Dual-band simultaneous
Management platform
  • Nuclias Connect
