Easily manage your network with Nuclias Connect

Easily manage your network with Nuclias Connect

Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.

Branded Captive Portal

Branded Captive Portal

A branded Captive Portal with industry-standard authentication for enhanced access management.

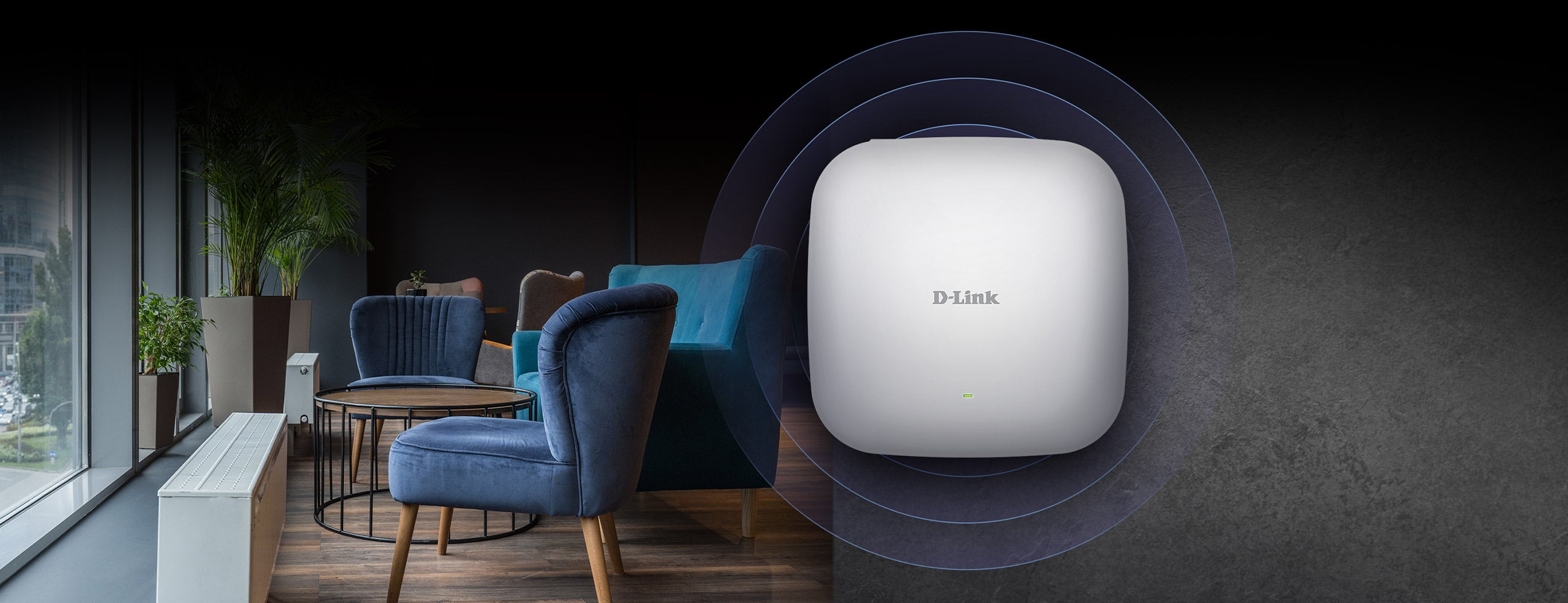

Simple‑to‑manage and easy‑to‑scale Wi‑Fi 6 for your business.

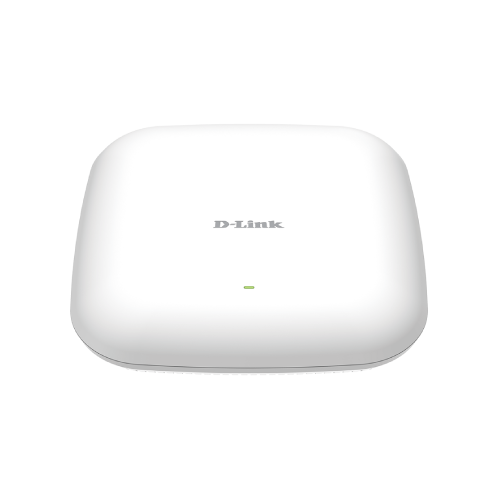

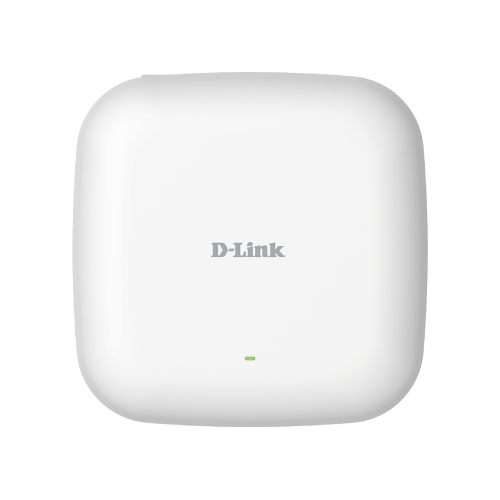

The Wi-Fi 6-ready DAP-X2810 provides businesses of all sizes with incredible speeds, significantly increased capacity and interference-free coverage, combined with centralised management by Nuclias Connect.

Simple‑to‑manage and easy‑to‑scale Wi‑Fi 6 for your business.

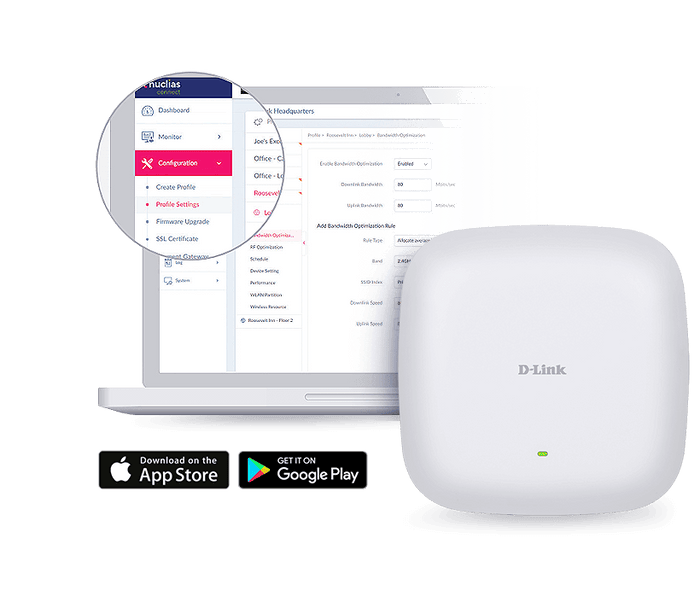

Manage your business network with ease

Manage your business network with ease

The DAP-X2810 works with our Nuclias Connect software-based management platform (with optionalhardware controller) that enables you to manage and control your business network from anywhere with an internet connection, for easy access, automation, and network scalability.

Next‑gen Wi‑Fi 6 performance that turbo boosts your business

Next‑gen Wi‑Fi 6 performance that turbo boosts your business

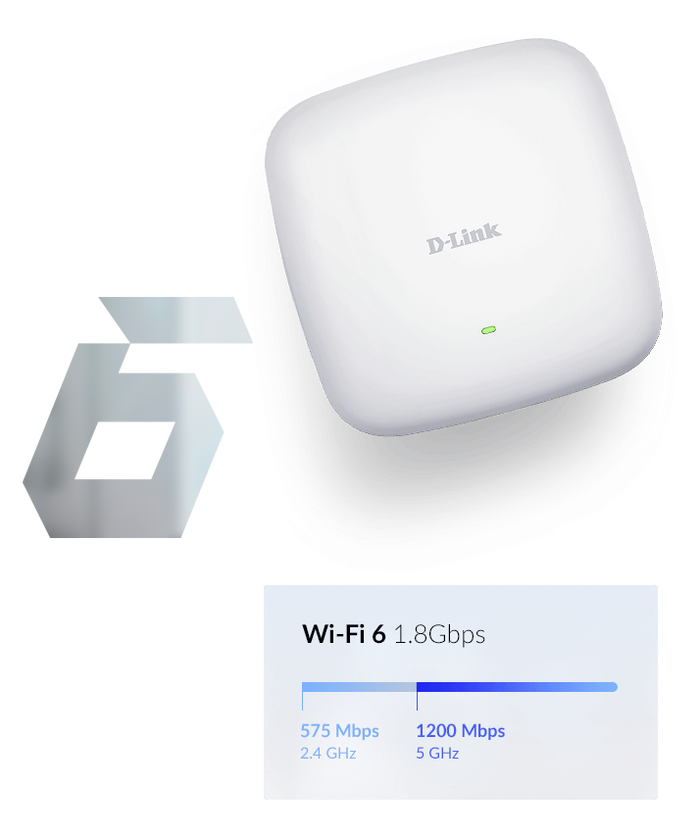

With combined Wi-Fi 6 802.11ax speeds of up to 1,800 Mbps, the DAP-X2810 provides lightning-fast connectivity, enabling large data transfer and superior quality video streaming, even in highly congested environments.

As the next-generation of connectivity, Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards.

Optimised Wi‑Fi for a superior client experience.

Optimised Wi‑Fi for a superior client experience.

The DAP-X2810 supports Band steering, 2x2 MU-MIMO and beamforming - all designed to work together to alleviate congestion.

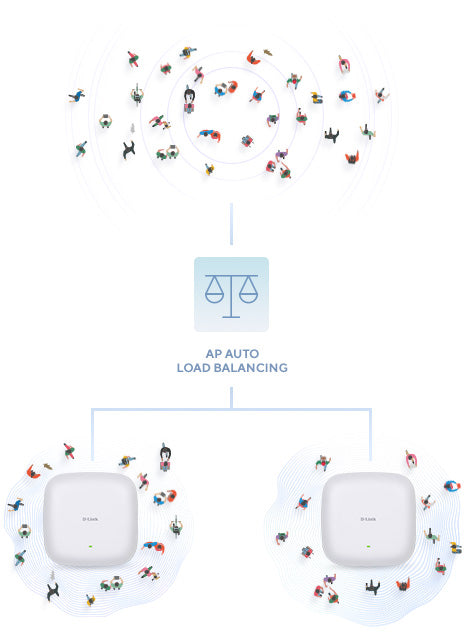

And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.

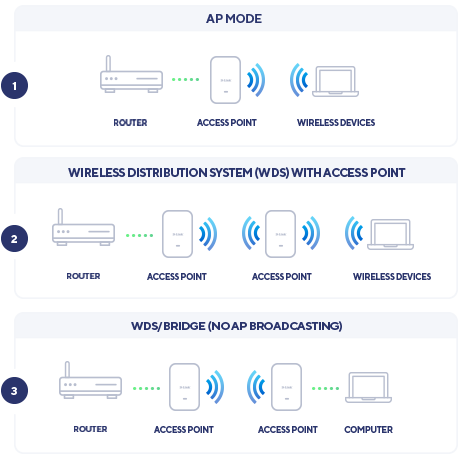

Multiple Operation Modes

Multiple Operation Modes

The DAP-X2810 can be configured to fit the needs of your network and optimise performance.

- Access point
- Wireless distribution system
  (WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client.

Simple and clean installation, anywhere.

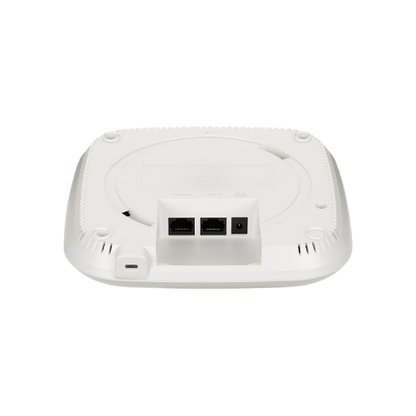

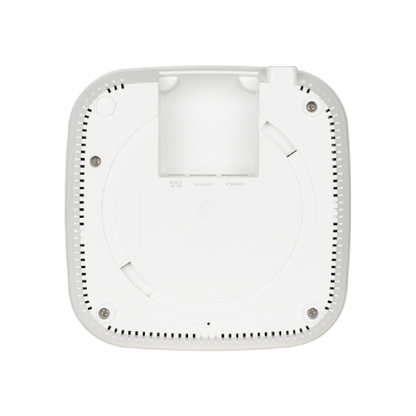

It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2810’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

Designed as a comprehensive and easy‑to‑use solution for every type of business

Designed as a comprehensive and easy‑to‑use solution for every type of business

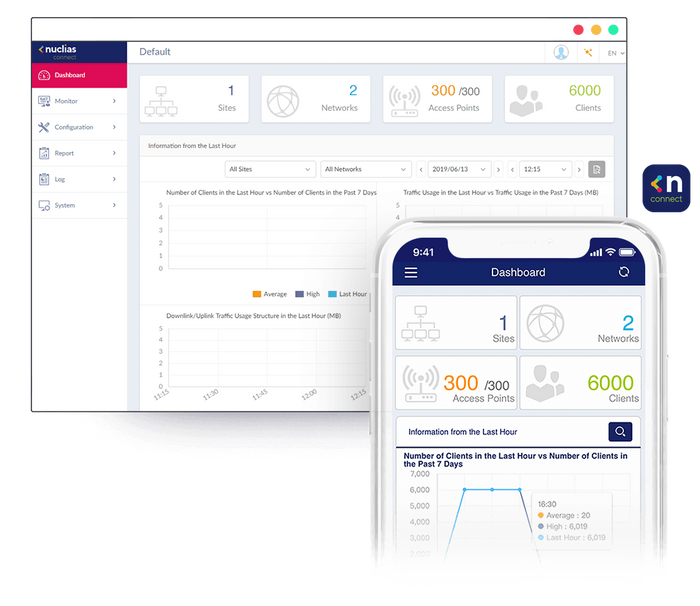

Manage your business network with powerful controls

Manage your business network with powerful controls

Nuclias Connect enables you to manage and control your network from anywhere and provides an extensive understanding of your network and its users through traffic analytics and status reports via a web browser or our free app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network and all the way down to the level of a single Access Point.

Comprehensive on‑site network management

Comprehensive on‑site network management

Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.

Scale your Wi‑Fi alongside your business, from anywhere

Scale your Wi‑Fi alongside your business, from anywhere

Nuclias Connect is designed with unlimited scalability, allowing you to tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points and surveillance cameras being ready to deploy straight out of the box and be automatically discovered by the software.

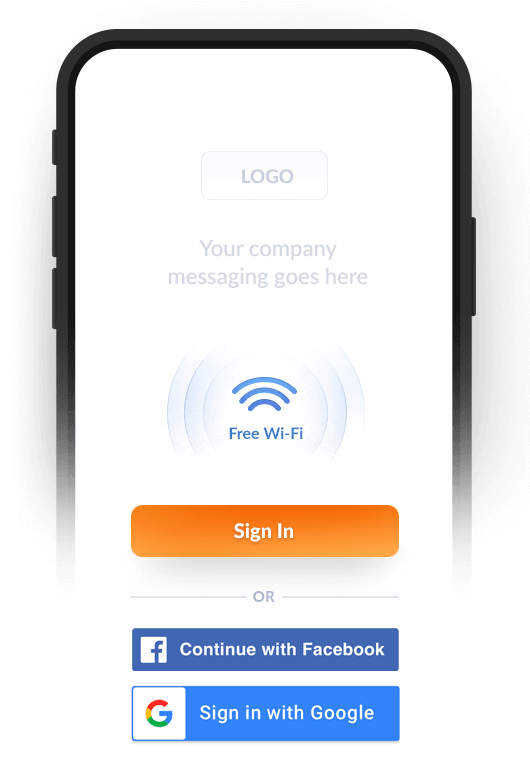

Get your guests online through a captive portal

Get your guests online through a captive portal

Not only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.

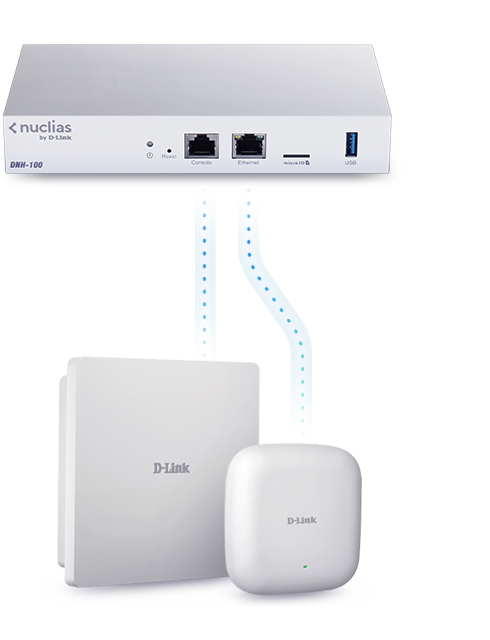

Nuclias hardware controller

Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Nuclias Connect use-cases:

SMB & SME

SMB & SME

Gain valuable insights into your business, manage multiple sites, ensure critical data doesn't leave your premises, and customise the network to your needs.

Retail Chains

Retail Chains

Create a secure and reliable wireless network for retailers of any size. Connect all POS devices and create fast Guest Wi-Fi networks for customers, ensuring business runs smooth.

Universities

Universities

Provide a scalable and robust network for students, with full web control and filtering. Keep management centralised and data secured on your premises.

Hotels

Hotels

Delight guests with in-room high-capacity, fast Wi-Fi. Drive customers to your marketing funnel, and increase re-engagement and customer loyalty.

Tech Specifications

Hardware
Antenna type
  • Embedded omni-directional antennas
Antenna gain
  • 3.2 dBi for 2.4 GHz
  • 4.3 dBI for 5 GHz
Power-over-Ethernet
  • Yes
Wired interface
  • 1 x Gigabit Ethernet LAN
Console port
Type of housing
  • Plastic
Wireless
Wireless
Wireless speed
  • 1200 Mbps 5 GHz
  • 574 Mbps 2.4 GHz
Wireless modes
  • Access Point (AP)
  • WDS bridge
  • WDS with AP
General
Type
  • Software Managed AP
Frequency band mode
  • Dual-band simultaneous
Advanced features
  • MU-MIMO
  • SmartBeam
  • 802.11k/r Roaming
Maximum number of SSIDs
  • 16
Auto channel selection
WMM-PS/802.11e (U-APSD)
Wi-Fi scheduler
AP traffic load balance
L2 roaming
WPA/WPA2-Personal/Enterprise
WPA3-Personal/Enterprise
WEP 64/128 bit
MAC address filtering
802.1X authentication
Station isolation
SSID broadcast disable
Management platform
  • Nuclias Connect
WEB
CLI
Telnet
Syslog
TKIP/AES encryption
WPA_WPA2_PSK over WDS
WLAN partition
DHCP server
IGMP snooping
IPv6
SNMP (v1, v2c, v3)
SSH
