10G Multi-Gigabit

10G Multi-Gigabit

10G multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.

2.5 Gigabit PoE ports

2.5 Gigabit PoE ports

8 x 100/1000/2.5GBASE-T PoE/PoE+ ports for rapid and reliable Ethernet connections and power to devices via a single cable.

Web-based GUI

Web-based GUI

Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.

Layer 2 Features

Layer 2 Features

Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).

Quality of Service (QoS)

Quality of Service (QoS)

Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.

Network Security

Network Security

D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.

Energy Saving Technology

Energy Saving Technology

Supports LED shutoff, and complies with IEEE 802.3az Energy Efficient Ethernet (EEE).

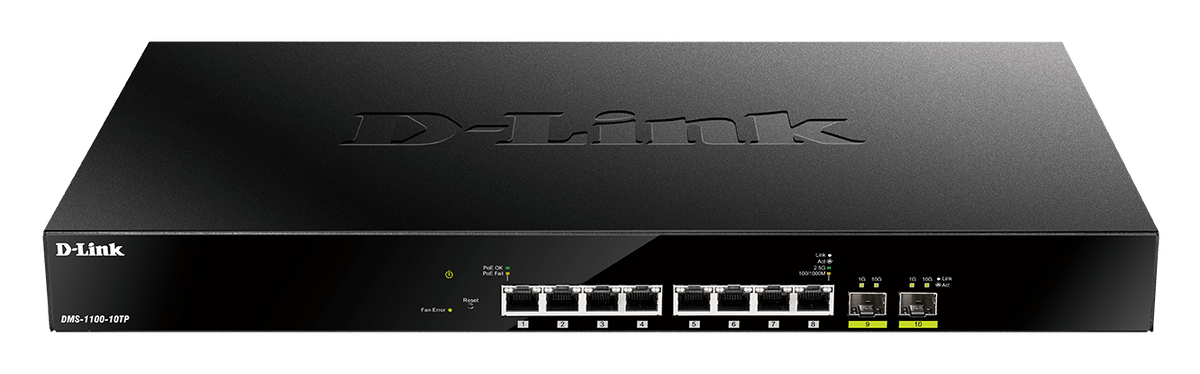

Futureproof your network. Ready for Wi-Fi 6.

Ideal for businesses looking to upgrade to Wi-Fi 6, the DMS-1100-10TP has 2.5 Gigabit PoE ports and 10 Gigabit SFP+ uplink ports, providing the multi-gigabit connectivity needed to maximise throughput between access points and the network infrastructure.

Futureproof your network. Ready for Wi-Fi 6.

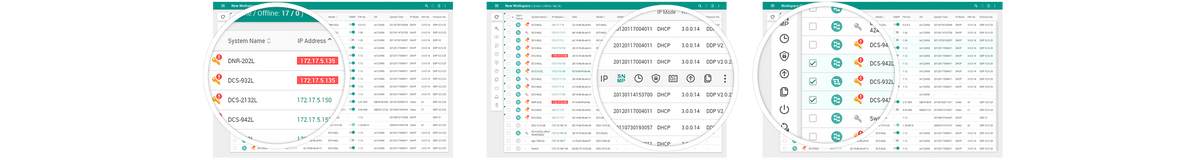

Versatile network management options.

The DMS-1100-10TP can be configured quickly and easily through the web-based management interface. Built-in smart wizard and dual configuration give network administrators more options and flexibility.

Also supports D-View Network Management Software that allows central management of critical network characteristics such as availability, reliability, resilience, and security.

Versatile network management options.
Affordable 10G capabilities, for a reliable high-speed network.

Affordable 10G capabilities, for a reliable high-speed network.

Add 10-Gigabit Ethernet connectivity to your network with this cost-effective switch. Integrate it into existing Gigabit Ethernet network infrastructures while simultaneously futureproofing the network.

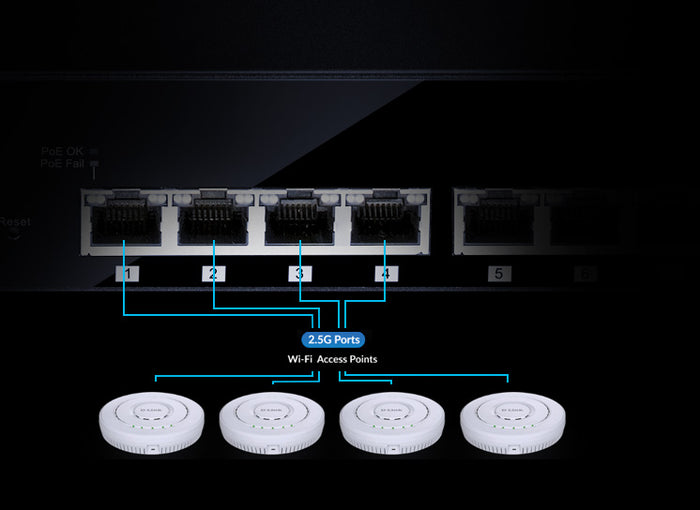

Ready for Wi-Fi 6.

Ready for Wi-Fi 6.

You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.

Learn more >

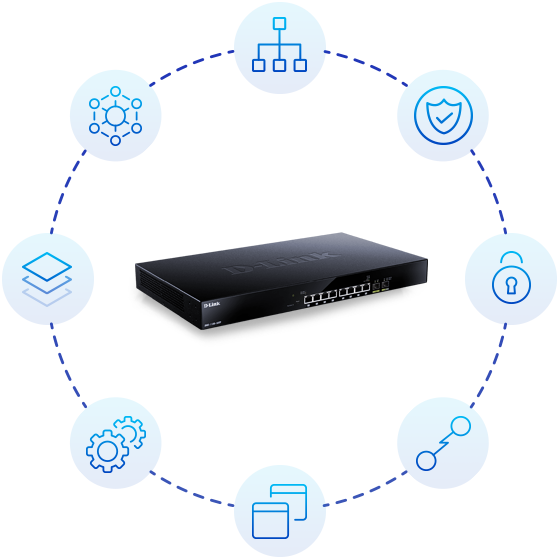

Extensive Layer 2 features.

Extensive Layer 2 features.

Utilise a full line up of Layer 2 features such as: port mirroring, Spanning Tree Protocol (STP/MSTP/RSTP),Link Aggregation Control Protocol (LACP), IGMP and MLD Snooping, auto voice and surveillance VLAN 2.0, and LLDP and LLDP-MED.

PoE and PoE+, with budgets up to 270W

Includes a high-power budget for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Security with every port.

Security with every port.

The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability. 
This switch also features support for traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, and DoS attack prevention.

Tech Specifications

Hardware
Number of ports
  • 5 to 14 ports
Main type of ports
  • 2.5GBASE-T Ethernet
  • Type of uplink ports
    • 10GbE SFP+
    PoE options
    • 802.3af
    • 802.3at
    Number of PoE ports
    • 8
    PoE power budget
    • See datasheet
    Form factor
    • Rackmountable
    Housing
    • Metal
    Jumbo frame
    Cable diagnostics
    Wireless
    Wireless
    MAC address
    • 16K
    Spanning Tree Protocol
    • 802.1D STP
    • 802.1s MSTP
    • 802.1w RSTP
    Ethernet ring protection switching (ERPS)
    Link aggregation
    • 802.3ad
    VLAN group (max static)
    • 4K
    VLAN type
    • MAC-based
    • Port-based
    Advanced VLAN
    • Auto Surveillance VLAN
    • Voice VLAN
    • Asymmetric VLAN
    Bandwidth control
    • 1 Kbps minimum granularity
    SNMP (v1/v2c/v3)
    LLDP
    LLDP-MED
    General
    Type
    • Smart managed
    Layer
    • Layer 2
    802.3az Energy-Efficient Ethernet support
    Number of QoS queues per port
    • 8
