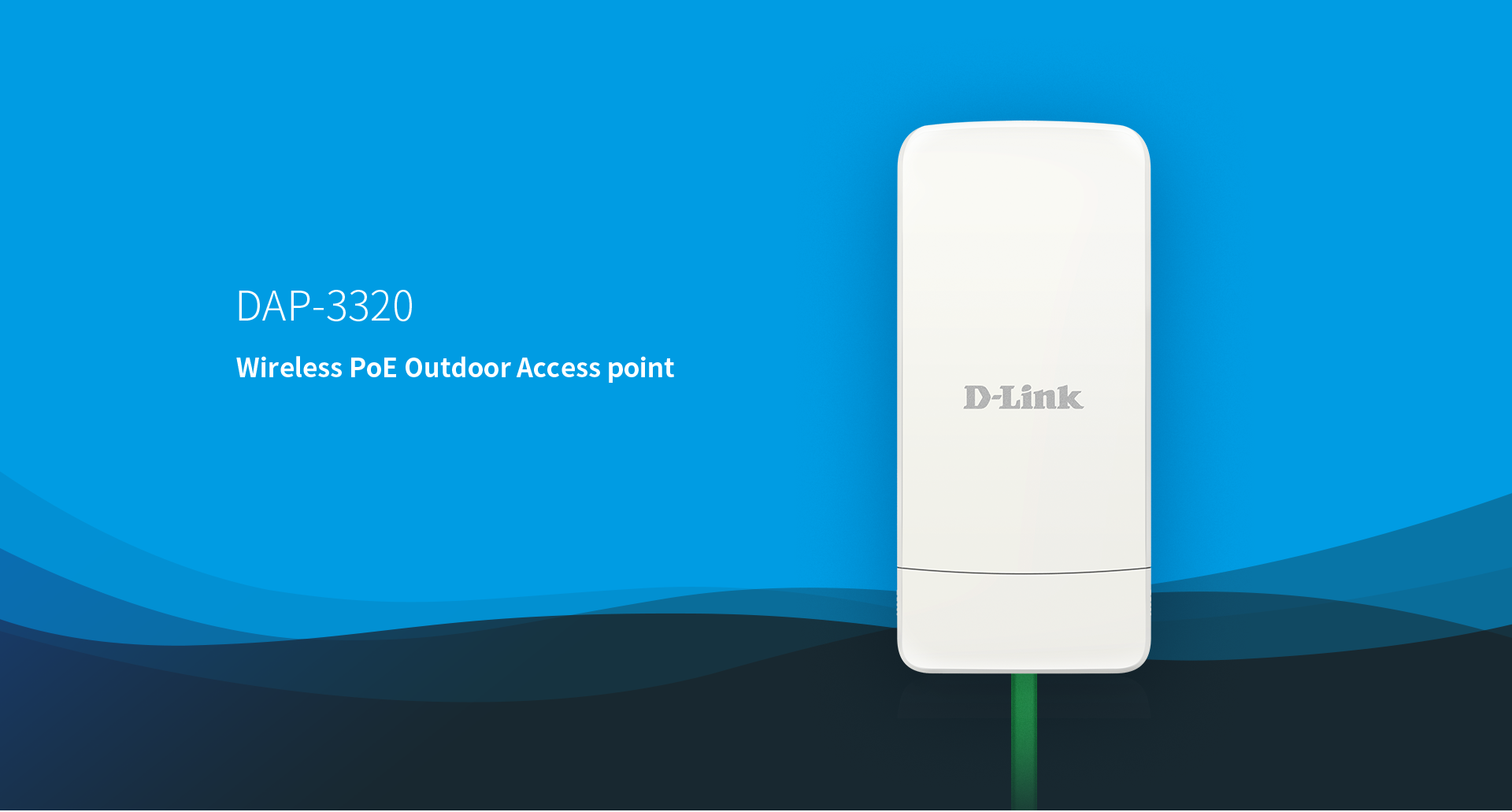

dap-3320-300mbps



N 300 Mbps Wireless Speed on 2.4 GHz Single band Connectivity for Increased Network Capacity
IP55 Weather Proof Housing built to withstand outdoor environments

High Power Radio Design



   High transmit power output *



dap-3320-high-power-radio-design

With its high output power design, PoE support, extensive manageability, versatile operation modes, and solid security
enhancements, the DAP-3320 provides small to medium business and enterprise environments with a business-class
solution for deploying a wireless network.



The DAP-3320 also has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power.



*Maximum Power varies in each country depending on local power regulations.

Flexible Deployment Options



The DAP-3320 features four operation modes, to adapt any situation. As a standard wireless Access Point (AP), the DAP-3320
can connect to a wide range of devices that are 802.11n/g/b compliant. In Wireless Distribution System (WDS) mode, wireless coverage is possible,
without the need for a wired backbone link. As a Wireless Client it can connect a non-wireless capable device to an existing AP.

dap-3320-flexible-deployment-ap



dap-3320-flexible-deployment-wds-mode



dap-3320-flexible-deployment-wds-with-ap-mode



dap-3320-flexible-deployment-wireless-client

Robust design for Outdoor deployment



Compliant with IP55 Dust/water-proof standard.

The DAP-3320 is built to withstand harsh environments.

The wall/pole mount on the rear makes it easy to be mounted on poles or walls.



dap-3320-robust-design-outdoor

WLAN partitioning for a useful function for
deployments such as wireless hot spots

DAP-3320 supports 802.1Q VLAN tagging operating with multiple SSIDs to segment traffic to enhance performance and security.
With station-to-station partitioning enabled, security is enhanced, since wireless traffic is isolated from each other,
and the possibility for data theft is reduced.

Advanced Security And Network Management Tools

dap-3320-dlink-central-wifimanager

Administrators can use the D-Link Central Wi-Fimanager(CWM-100) to configure and manage multiple access points from a single location.
In addition, the D-Link Central Wi-Fi manager provides network administrators with the means of conducting regular maintenance checks remotely.



The DAP-3320 supports 64/128-bit WEP data encryption and WPA/WPA2
security functions as well as MAC Address Filtering, and the Disable SSID
Broadcast function to limit outsiders’ access to the internal network.

DAP Series

dap-3320-dap-2230



DAP-2230

dap-3320-dap-2660



DAP-2660

dap-3320-dap-2695

DAP-2695

Specifications


Device Interfaces • 802.11n/g/b wireless
• Reset Button
• 10/100BaseT PoE Ethernet Port
• Grounding Wire Connector
LEDs • Power
Antenna • 2 dBi Antenna
Wireless Frequency • 2.4 GHz to 2.4835 GHz
Maximum Transmit Power Output • 29.55 dBm (901 mW)
Standards • IEEE 802.11 b/g/n
• IEEE 802.3u
• IEEE 802.3
• IEEE 802.3af
Operation Mode • AP
• WDS
• WDS with AP
• Wireless Client
Network Management • Web Browser Interface
• HTTP, Secure HTTP (HTTPS)
• Telnet, Secure Shell (SSH)
• D-Link Central WiFi Manager
• SNMP v1, v2c and v3
• Traffic Control
• AP Array Security
Security • WPA2-Personal/Enterprise
• WPA-Personal/Enterprise
• WEP 64/128 bit Encryption
• 802.1x
• SSID Broadcast Disable
• MAC Address Control
• Network Access Protection
SSID/VLAN • Support for up to 8 SSIDs/VLANs
Dimensions • 105.43 x 228.6 x 35.86 mm (4.15 x 9.00 x 1.41 inches)
Weight • 370.4 grams (13.07 ounces)
• 384.25 grams (13.55 ounces) with mounting bracket
Power Input • 48 V, 0.5 A or 802.3af PoE compliant
Temperature • Operating: -20 to 60 °C (-4 to 140 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)
Humidity • Operating: 0% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Surge Protection • 4 kV
ESD Protection • 15 kV
Certifications • CE
• UL
• Wi-Fi Certified
• FCC
• IC
