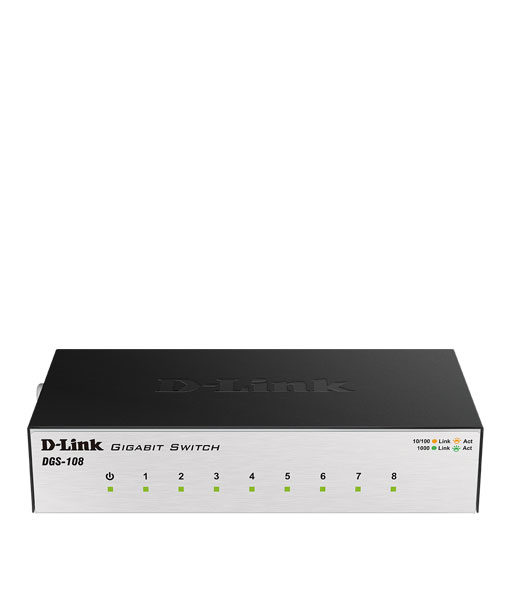

8-Port Gigabit Desktop Switch In Metal Casing

DGS-108

8-Port Gigabit Desktop Switch In Metal Casing

- High-Speed Networking
- Intelligent Data Streaming
- Eco-Friendly and Economical


UnmanagedSwitching Type
10/100/1000MbpsLink Speed
8Port Count

This 8-Port Gigabit Ethernet Switch is designed for the departmental and enterprise connection. Powerful and versatile, it eliminates network bottlenecks while giving users the capability to fine-tune performance. The DGS-108 has a special front access design for Ethernet ports/LEDs to for easier control of network status. Also, the metal case design keeps cool, allowing for superior performance. Additionally, the DGS-108 complies with IEEE 802.3az Energy-Efficient Ethernet (EEE) standards, making it energy efficient without losing connectivity or functionality.

Integrated Network

The DGS-108 8-port Gigabit Switch uses auto-sensing 10/100/1000 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet and Gigabit devices to create an integrated network. These ports detect the network speed and auto negotiate between 10BASE-T and 100BASE-TX at full and half-duplex,and 1000BASE-TX at full
duplex, allowing you to get the maximum speed possible for each device connected to your network.

Simplified Installation

All of the ports on the DGS-108 support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DGS-108 features multiple front, easy-to-access Ethernet ports with two color LED indicators per port to easily distinguish link status.

Flow Control for Secure Transmission

When a port reaches its receiving buffer capacity, the 802.3x flow control feature activates to minimize dropped packets, providing a more reliable connection for all of your connected devices while surfing the web, playing games, or accessing media.
